Check the roller sunblind and the glass roof for function
NOTE:
RISK OF DAMAGE
Damage to the sun blind rollers.
After the installation an initialized sun blind roller can be damaged during the first start-up.
Damage to the sun blind rollers.
After the installation an initialized sun blind roller can be damaged during the first start-up.
- Perform initialization before start-up.

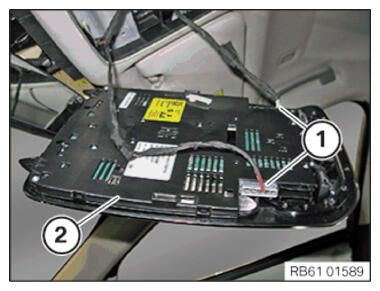

- Connect the connector (1) with the Roof function center (FZD) (2).
Initialize panorama glass roof
- Close all doors.
- For US version: Start engine.
- If not US version: Operate the START-STOPPING button three times within 0.8 s.

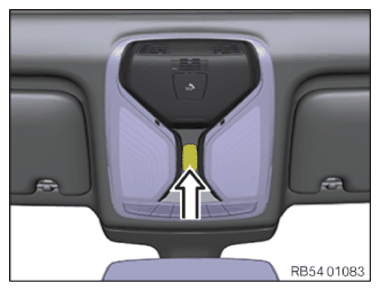

- Press and hold the switch towards "Lift".
- In the event of a delayed start or sudden stop of the panorama glass roof: Continue to press and hold the switch towards "Lift".
NOTE:
TECHNICAL INFORMATION
If the switch is released in the meantime, restart the initialization.
If the switch is released in the meantime, restart the initialization.
- Keep pressing the switch during the entire procedure (approx. 50 s):
- Initialization starts approx. 15 seconds after the button is pressed.
- The panorama glass roof and the roller sunblind are each opened and closed completely.
Initialization is complete once the panorama glass roof and both roller sunblinds are completely closed. Button can be released.
- Carry out functional check (one-touch mode, crush guard and convenience function where applicable).
- Clear fault memory in FZD control unit.
- Disconnect the connector (1) at the Roof function center (FZD) (2).
