Installing the rolling module

Courtesy of BMW OF NORTH AMERICA, INC.

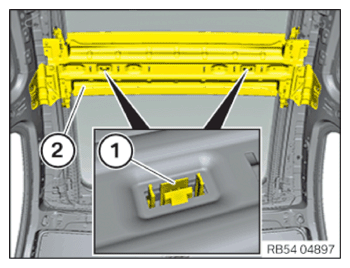

• With the help of a support person, position and clip in the rolling module (2) at the retaining clips (1).
• Ensure that the retaining clips (1) correctly engage.

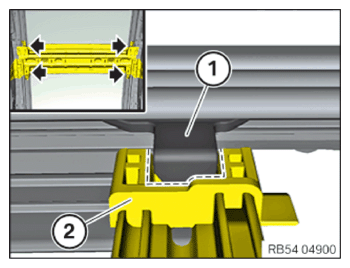

• Ensure when installing the rolling module that the driver flag (1) is correctly guided into the rolling clutch of the rolling mirror (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

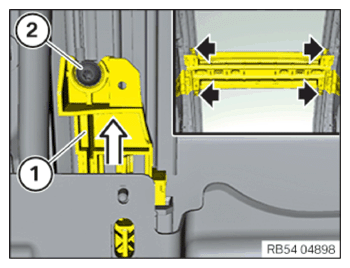

• Shift the guide (1) in the arrow direction until it makes contact with the mounting bolt (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

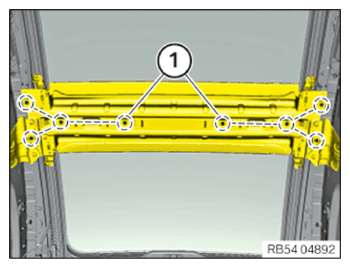

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Roller module on roof module
  Hexagon screw	tightening torque	4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

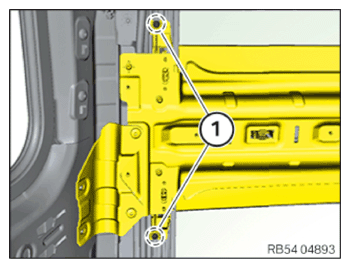

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Roller module on guide rails
  Hexagon screw	tightening torque	1.6 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

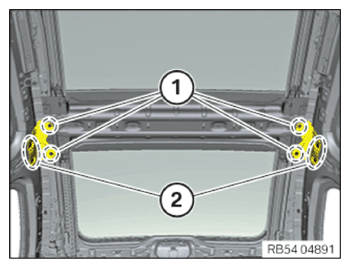

• Tighten the screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Crash plate on B-pillar
  Screw	tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Crash plate on roller blind cover
  Screw	tightening torque	10 Nm

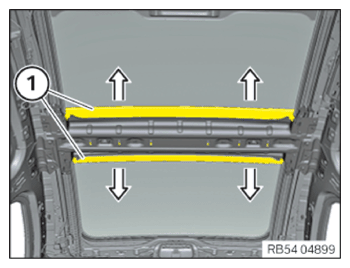

• Manually close both roller sunblinds (1) on the drives by a few centimeters.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTIALLY INSTALLING THE HEAD AIRBAG .
• Refer to CHECKING THE ROLLER SUNBLIND AND THE GLASS ROOF FOR FUNCTION .
• Refer to INSTALLING THE HEADLINING (LOWERED WITH PANORAMIC GLASS SUNROOF) .
• Refer to INSTALLING INTERIOR ROOF LIGHT .
• Refer to INSTALLING THE GRAB HANDLE AT THE REAR LEFT AND RIGHT .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE LEFT AND RIGHT FRONT VANITY MIRROR LIGHT .
• Refer to INSTALLING BOTH SUN VISORS AND COUNTER SUPPORTS .
• Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
• Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
• Refer to INSTALLING BOTH BACKREST SIDE SECTIONS .
• Refer to PARTIALLY INSTALLING BOTH B-PILLAR TRIM PANELS AT TOP .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INITIALIZING PANORAMA GLASS ROOF .
