Remove the acoustic cover of the oil sump
WARNING:
Car may slip off the vehicle hoist where components are supported.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Secure the vehicle hoist against lowering and lifting.
- Make sure that the vehicle does not lift off the mounting plates on the vehicle lift.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: RAISING THE VEHICLE WITH A VEHICLE LIFT .
WARNING:
Car may slip off the vehicle hoist if the weight is distributed unevenly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Ensure there is a specific weight compensation on the car.
WARNING:
Heavy component falling down or tipping.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before lowering or removing the front axle: Secure the engine in the installation position.
- For additional information see: SECURING ENGINE IN INSTALLATION POSITION .
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
Preliminary work
- DISCONNECTING ALL BATTERY GROUND LEADS .
- BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
- REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
- REMOVING THE RIGHT AND LEFT SIDE HOOD SEALS .
- REMOVING THE ACOUSTIC COVER .
- REMOVING INTAKE SILENCER HOUSING .
- REMOVING TOP CLEAN AIR PIPE .
- REMOVING THE CENTER ENGINE COMPARTMENT COVER .
- PARTIALLY RELEASING THE FRONT LEFT AND RIGHT SPRING STRUT .
- REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
- REMOVING THE REAR SECTION OF THE WHEEL ARCH COVER ON THE FRONT LEFT AND RIGHT .
- REMOVING THE FRONT UNDERBODY PROTECTION .
- REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
- REMOVING THE CENTER UNDERBODY PROTECTION .
- REMOVING REAR UNDERBODY PROTECTION .
- REMOVING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- INSTALLING THE TORSION STRUT LEFT AND RIGHT .
- REMOVING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- MOVE THE ENGINE TO THE INSTALLATION POSITION .
- DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
- IF INSTALLED: REMOVING THE SILENCER OF THE STATIONARY HEATING .
- REMOVING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- LOOSENING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .
- RELEASING THE BRAKE HOSE AT THE FRONT LEFT AND RIGHT .
- IF INSTALLED: DISCONNECTING THE PLUG CONNECTIONS OF THE ACTIVE STABILIZER .
- PREPARING THE MOBILE TABLE LIFT .
- POSITIONING THE MOBILE LIFTING TABLE .
- DETACHING THE TOP LEFT AND RIGHT WISHBONE FROM THE SWIVEL BEARING .
- DETACHING THE LEFT AND RIGHT SPRING STRUT FROM THE WISHBONE ON THE BOTTOM .
- REMOVING CRASH LEVERS LEFT AND RIGHT .
- RELEASING THE SCREWS ON THE LEFT AND RIGHT FRONT AXLE SUPPORT .
- LOWERING FRONT AXLE SUPPORT .
Precondition
Disconnect all negative battery cables.
- Unlock and release the plug connection (1).
- Loosen nut (2).
- Guide the positive battery cable (3) out of the clamp (4) and lay to one side.
- Unlock and loosen the clamps (1).
- Guide out the wiring harness section for the automatic transmission (2) and set it aside.
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

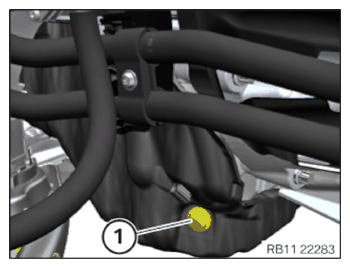

- Loosen screw (1).
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Loosen the holder (1).
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.
- Feed out the transmission oil lines (1) from the holder (2) and place to one side.
- Loosen the expanding rivet (1).
- Loosen the expanding rivet (1).
- Loosen the expanding rivet (1).
- Undo Christmas tree clip (2).
- Guide out and remove acoustic cover (1) of the oil pan.
