Removing intake silencer housing
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.

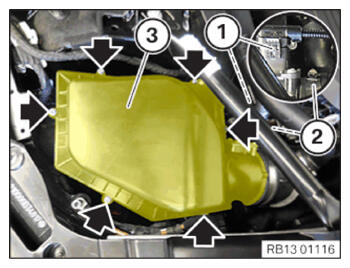

- Unlock and loosen connector (1).
- Unfasten clamp (2).
- Remove screws (arrows).
- Remove the upper section of the intake filter housing (3).

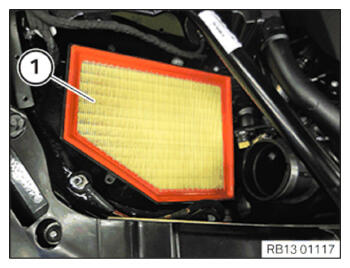

- Remove the air filter insert (1).

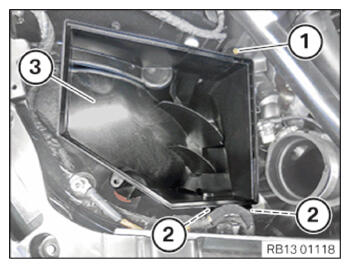

- Loosen screw (1).
- If installed: Unlock and loosen the clamps (2).
- Pull the intake silencer housing lower part (3) up and out of the rubber mount and remove it.
