Detach the left and right spring strut from the wishbone on the bottom
NOTE:
Perform the steps on the right and left side.

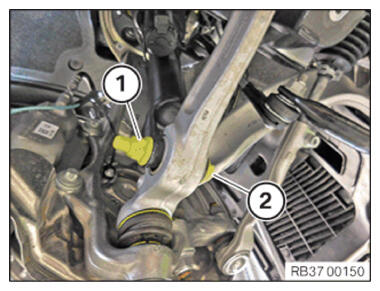

- Detach the spring strut from the wishbone on the bottom
- Loosen nut (1).
- Pull out screw (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
