Prepare the mobile table lift

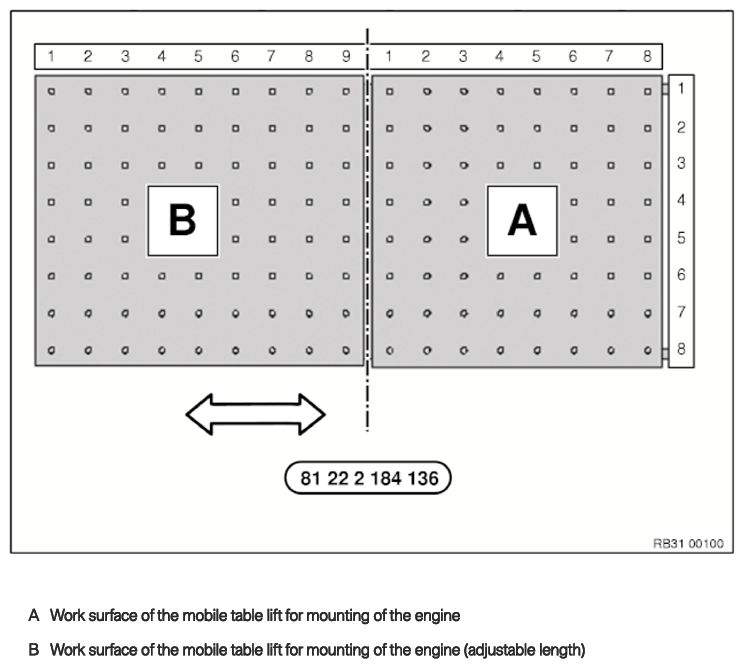

Mobile table lift

Courtesy of BMW OF NORTH AMERICA, INC.

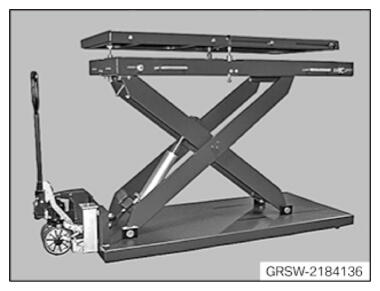

• Stage the mobile table lift 2 184 136 .

  Courtesy of BMW OF NORTH AMERICA, INC.

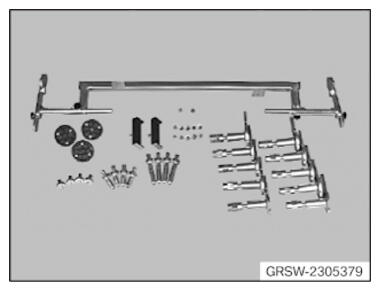

• Place the mounting element from the set of special tools 2 305 379 ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

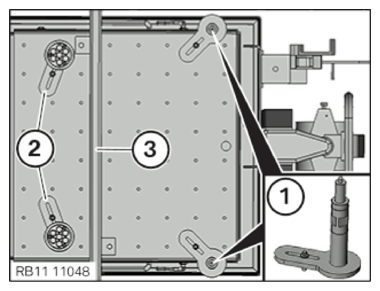

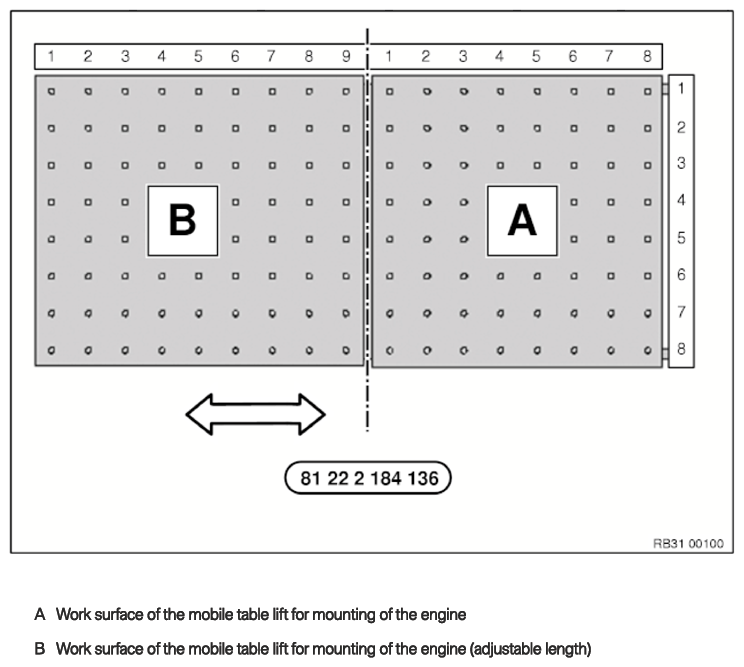

• Position the mounting elements (1) with the mountings (50) on the work surface (A) of the mobile lifting table for the front subframe at the coordinates 7/1  and 7/8  .
• Position the mounting elements (2) with the mounts (80) on the work surface (A) of the mobile lifting table for the front subframe at the coordinates 2/2  and 2/7  .
• Position the swivel bearing stand (3) on the work surface (A) of mobile lifting table at the coordinates 3/1  and 4/8  .

  Courtesy of BMW OF NORTH AMERICA, INC.

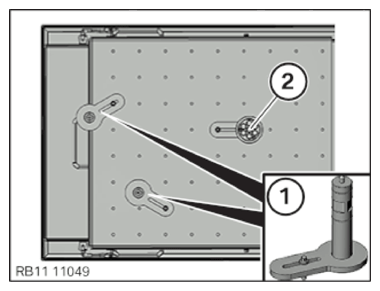

• Position the mounting elements (1) with the mounts (60) on the work surface (B) of the mobile lifting table for the front axle support at the coordinates 1/3  and 3/7.
• Position the mounting element (2) with the mount (80) on the work surface (B) of the mobile lifting table for the transmission at the coordinates 5/4.

  Courtesy of BMW OF NORTH AMERICA, INC.

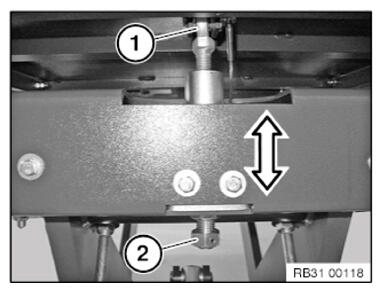

• Adjust the inclination of the lifting table (1) with the adjustment screw (2) until the bubble level of the lifting table (1) displays the correct position.

  Courtesy of BMW OF NORTH AMERICA, INC.

Mobile table lift

Courtesy of BMW OF NORTH AMERICA, INC.

• Stage the mobile table lift 2 184 136 .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Place the mounting element from the set of special tools 2 305 379 ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

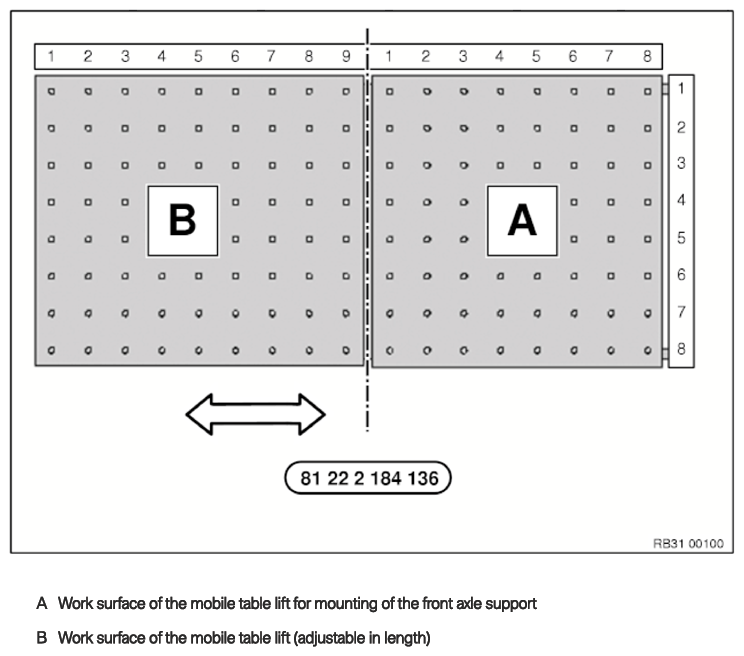

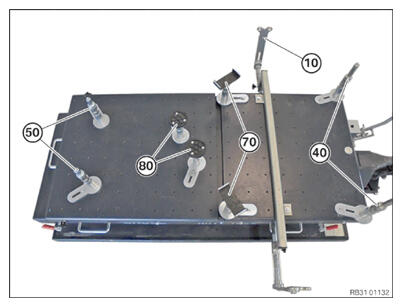

• Position mounting elements with mountings (40) on work surface (A) of mobile lifting table for front axle support at coordinates 7/1  and 7/8.
• Position swivel bearing mounting (10) on work surface (A) of mobile lifting table at coordinates 3/1  and 4/8.
• Position the mounting elements with the fixtures (70) on to the work surface (A) of the mobile lifting table for the front axle support in case of the coordinates 2/1  and 2/8.
• Position the mounting elements with the fixtures (80) on to the work surface (B) of the mobile lifting table for the in case of the coordinates 7/3  and 8/6.
• Position the mounting elements with the fixtures (50) on to the work surface (B) of the mobile lifting table in case of the coordinates 2/2  and 2/7.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust the inclination of the lifting table (1) with the adjustment screw (2) until the bubble level of the lifting table (1) displays the correct position.

  Courtesy of BMW OF NORTH AMERICA, INC.

Mobile table lift

Courtesy of BMW OF NORTH AMERICA, INC.

• Stage the mobile table lift 2 184 136.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Place the mounting element from the set of special tools 2 305 379 ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the mounting elements (1) with the mounts (50) on the work surface (A) of the mobile lifting table for the front subframe at the coordinates 7/1  and 7/8.
• Position the mounting elements (2) with the mounts (80) on the work surface (A) of the mobile lifting table for the front subframe at the coordinates 2/2  and 2/7.
• Position the swivel bearing stand (3) on the work surface (A) of mobile lifting table at the coordinates 3/1  and 4/8.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Adjust the inclination of the lifting table (1) with the adjustment screw (2) until the bubble level of the lifting table (1) displays the correct position.
