Securing rear axle

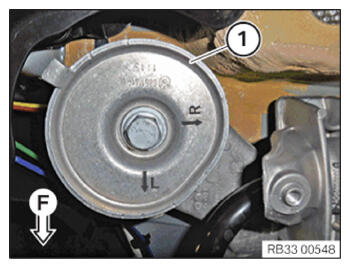

• Tighten the thrust washer (1)  on the left on the rubber mount of the rear axle support.

  Left thrust washer (1)  = L arrow in driving direction

  Right thrust washer (1)  = R arrow in driving direction

• Replace screw.

  Parts:  Screw

• Tighten down screw.
  TIGHTENING TORQUES SPECIFICATION



  Rear axle carrier to body
  M14 Replace screw.	tightening torque	185 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install thrust arm

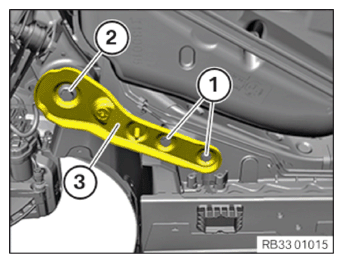

• Replace screws (1)  and (2)  .

  Parts:  Screws

• Position thrust arm (3)  .
• Screw in the screws (1) (2)  by hand.
• Tighten down screw (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Rear axle carrier to body
  M14 Replace screw.	tightening torque	185 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (1)  .
  TIGHTENING TORQUES SPECIFICATION



  Thrust arm on body
  M10 Replace screws.	Joining torque	56 Nm
  	Angle of rotation	45°

Follow-up work

• Refer to REMOVE THE SPECIAL TOOL FROM THE REAR AXLE .
• Refer to INSTALLING THE MOUNTING BLOCKING FOR THE TORSION STRUTS .
• Refer to IF INSTALLED: CONNECTING THE CONNECTOR TO THE SERVOMOTOR OF THE REAR AXLE DIFFERENTIAL .
• Refer to IF INSTALLED: SECURING CABLE .
• Refer to IF INSTALLED: CONNECTING THE CABLE (ADDITIONAL WORK ON ACTIVE STABILIZER .
• Refer to CONNECTING THE CONNECTORS ON LEFT AND RIGHT .
• Refer to SECURING CABLES ON RIGHT AND LEFT .
• Refer to CONNECTING THE CONNECTOR TO THE REAR RIDE HEIGHT SENSOR .
• Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
• Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING REAR BUMPER PANEL .
• Refer to INSTALLING BOTH EXHAUST COVERS .
• Refer to INSTALLING THE REAR BUMPER TRIM .
• Refer to INSTALLING THE REAR DIFFUSER .
• Refer to IF INSTALLED: INSTALLING THE REAR AXLE COVER .
• Refer to INSTALLING THE TORSION STRUT ON THE REAR LEFT AND RIGHT .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
• Refer to INSTALLING REAR WHEEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
• Refer to INSTALLING COVER FOR WATER CHANNEL ON LEFT AND RIGHT .
• Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL LEFT AND RIGHT PARTIALLY .
• Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
