Installing the torsion strut on the rear left and right

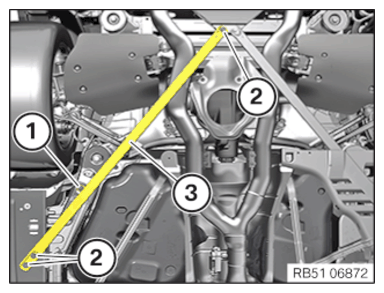

Installing rear torsion strut

• Insert and install the torsion strut (3) on the right.
• Replace screws (2).

  Parts:  Screws

• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Torsion strut to mounting
  M12 Replace screws.	Tightening torque	100 Nm
  	Angle of rotation	90°

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1).

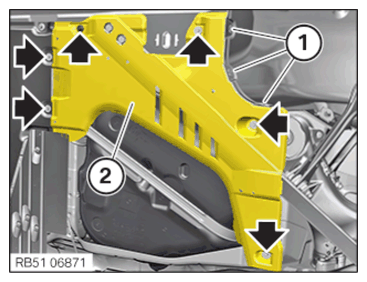

Installing tank cover

• Feed in and position the tank cover (2).
• Tighten all bolts and nuts (arrows).
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
