Installing the mounting block for the torsion struts
Installing the mounting block for the torsion struts

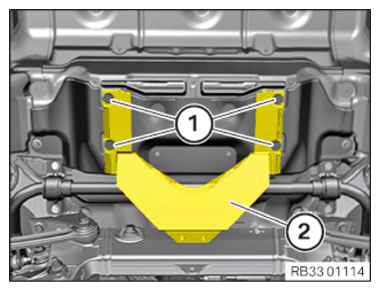

Position the mounting block (2).
Replace the screws (1).
Parts:
Screws
Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATIONS
Mounting block to body
M12
Replace screw.
Joining torque
100 Nm
Angle of rotation
90°
