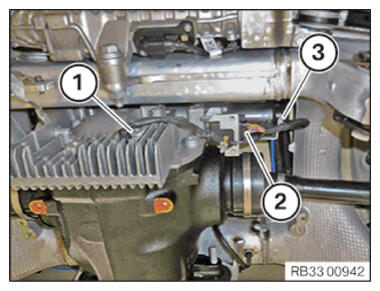

If installed: Connecting the connector to the servomotor of the rear axle differential

Attach the cable on the holder (3).
Connect and lock all connectors (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

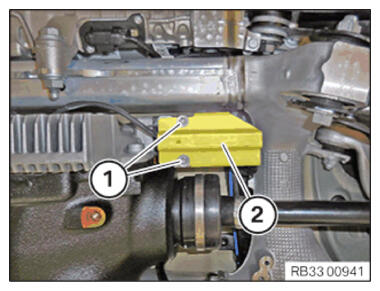

Secure the cable to the heat shield (2) and position the heat shield (2).

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Heat shield to servomotor holder
M5	Tightening torque	4.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
