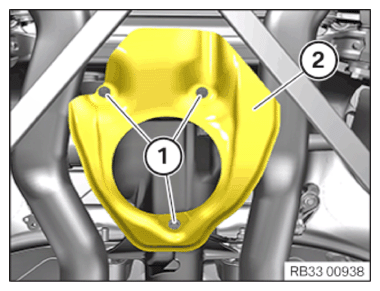

If installed: Install the rear axle cover

• Position the cover (2).
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Rear axle cover on holder/rear axle differential
M6	tightening torque	9 Nm
