Installing the output shaft

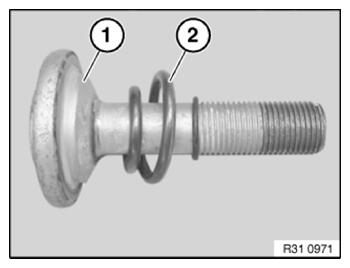

• Replace the collar screw (1) and compression spring (2).

  Parts:  Collar screw and compression spring

• Note installation position of compression spring (2).
• Keep the collar screw (1) and the front gearing of the wheel bearing and the prop shaft clean and free of grease.

  Courtesy of BMW OF NORTH AMERICA, INC.

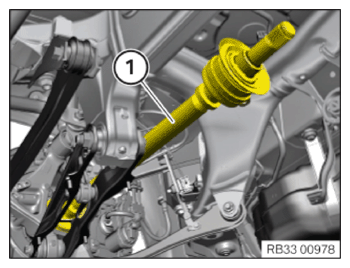

• Position the output shaft (1) on the wheel bearing from the center of the vehicle.
• Tie up output shaft (1).

  Do not allow the output shaft (1) to hang on the joint.

  Courtesy of BMW OF NORTH AMERICA, INC.

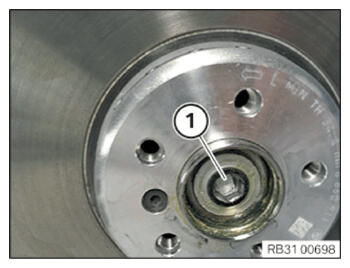

• Hand-tighten the collar screw (1) with the compression spring.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The front gearing of the wheel bearing and output shaft must be installed in an interlocking position (tooth-in-tooth).
• Ensure positive locking by mutual twisting of the wheel bearing (1) and the output shaft (2).
• Press brake pedal.
• Tighten the collar screw.

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Output shaft to wheel bearing
  M16 Replace the collar screw.	Joining torque	210 Nm
  	Angle of rotation	90°

Follow-up work

• Refer to INSERTING THE LEFT OR RIGHT OUTPUT SHAFT IN THE REAR AXLE DIFFERENTIAL .
• Refer to LIFTING THE REAR AXLE DIFFERENTIAL .
• Refer to ATTACHING THE LEFT OR RIGHT OUTPUT SHAFT TO THE REAR AXLE DIFFERENTIAL .
• Refer to CHECK/TOPPING UP OIL LEVEL IN THE REAR AXLE DIFFERENTIAL .
• Refer to SECURING THE PROPELLER SHAFT ON THE REAR AXLE DIFFERENTIAL .
• Refer to INSTALLING THE HEAT SHIELD AT THE REAR .
• Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
• Refer to INSTALLING THE REAR DIFFUSER .
• Refer to IF INSTALLED: INSTALLING THE REAR AXLE COVER .
• Refer to INSTALLING THE TORSION STRUT ON THE REAR LEFT AND RIGHT .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to INSTALLING THE UNDERBODY PLANKING OF THE TRANSMISSION ON THE SIDE .
• Refer to INSTALLING THE COVER OF THE CAMBER CONTROL ARM ON THE LEFT AND RIGHT .
