Install the underbody planking of the transmission on the side
NOTE:
The following step(s) must be performed if the listed component(s) is/are installed.

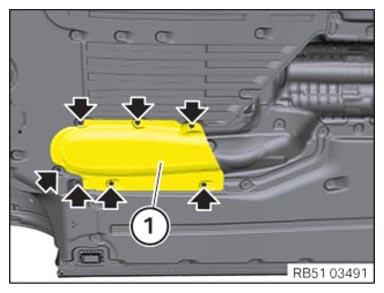

- Insert the undershield (1).
- Tighten screws (arrows).
TIGHTENING TORQUES SPECIFICATION
| Undershield |
| screw |
Tightening torque |
2.6 Nm |
| Plastic nut |
Tightening torque |
2.6 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
