Adjusting Both Tailgate Hinges

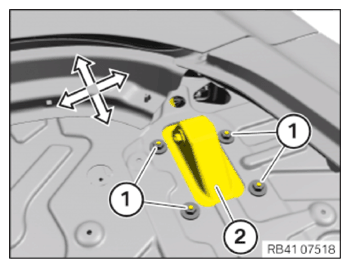

• Slacken nuts (1) until the tailgate hinge (2) can be shifted.
• Shift tailgate hinge (2) horizontally, till the Trunk lid has the specified gap dimension for the side panel.
• Tighten nuts (1).
  TIGHTENING TORQUES SPECIFICATION



  Tailgate hinge to body
  Nut M8
  	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

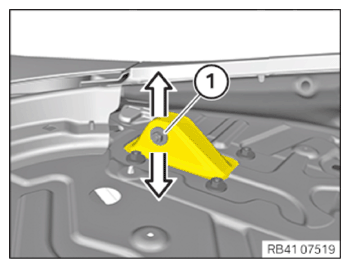

• Slacken the nut (1) until the hinge arm can be shifted.
• Shift the hinge arm vertically until the trunk lid has the specified gap dimension to the side panel.
• Tighten the nut (1).
  TIGHTENING TORQUES SPECIFICATION



  Hinge arm to hinge support
  Nut
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

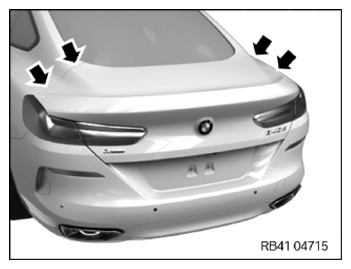

• Check the gap dimensions (arrows) between trunk lid and side panels.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Gap dimensions do not correspond to the specifications.

  Measure

  • Adjust tailgate hinge.

  Mounting electrical spindle drive on the right hinge arm

  NOTE: TECHNICAL INFORMATION
  The notes on the disassembly and installation of ball sockets with clamps are the basis for these repair instructions and must be observed without fail.
  For additional information see: 51 23... Note information on disassembly/installation of ball sockets with clamp

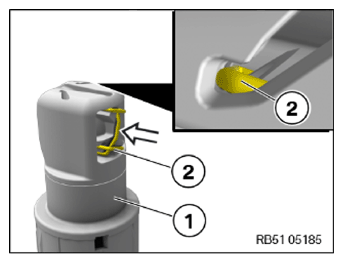

• Before installing the electrical spindle drive (1) at the hinge arm, make sure that the retaining spring (2) is in its initial position.
• Check the retaining spring (2) for damage; if necessary, renew the electrical spindle drive (1) for the tailgate.

  Courtesy of BMW OF NORTH AMERICA, INC.

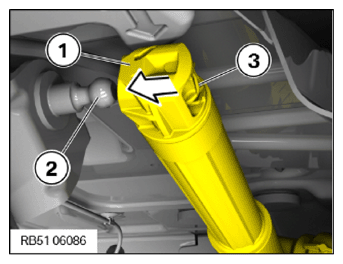

• Press the ball socket (1) onto the ball hub (2) at the hinge arm in the arrow direction until the retaining spring (3) snaps in correctly and audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

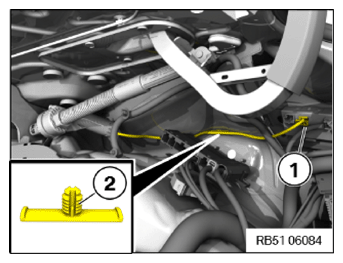

• Clip in the cable clip (2).
• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: For a better overview the removed condition is shown here.

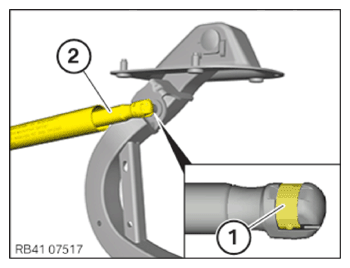

• Left hinge arm:

  Check the clamp (1) is fitted correctly.

• Insert the ball socket of the tension spring (2) at the ball pin on the hinge arm.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING SOUND INSULATION ON THE REAR SHELF .
• Refer to INSTALLING THE REAR LEFT UPPER SEAT BELT .
• Refer to INSTALLING THE COVER ON THE STORAGE BOX .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING LOADING EDGE TRIM .
• Refer to INSTALL LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALL THE TRIM PANEL FOR THE STORAGE SHELF .
• Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
• Refer to INSTALLING BOTH REAR SIDE TRIM PANELS .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
