Removing lock for rear seat backrest

Preliminary work

• Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING BOTH REAR SIDE TRIM PANELS .
• Refer to REMOVING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
• Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
• Refer to REMOVING THE TRIM PANEL FOR THE STORAGE SHELF .

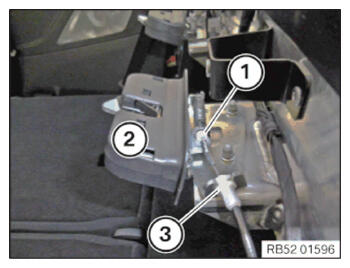

• Unclip the Bowden cable bracket (3).
• Carefully detach the Bowden cable (1) from the lock for the back seat backrest (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Loosen screws (1).
• Removing the lock for the rear seat backrest (2).

  Courtesy of BMW OF NORTH AMERICA, INC.
