Remove right cylinder head cover

Preliminary work

• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to REMOVING THE ACOUSTIC COVER .
• Refer to REMOVING LEFT AND RIGHT WIPER ARM .
• Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
• Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
• Refer to REMOVING THE SEAL FOR THE HOOD REAR .
• Refer to REMOVING THE COWL COVER .
• Refer to REMOVING THE COWL UPPER PART IN THE CENTER .
• Refer to REMOVING TRAILING LINK AT SPRING BOLT .
• Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
• Refer to REMOVING LEFT THROTTLE VALVE ASSEMBLY .
• Refer to PARTIALLY LOOSENING THE LEFT-HAND CHARGE AIR COOLER .
• Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
• Refer to REMOVING RIGHT AIR DUCT .
• Refer to REMOVING THE RIGHT THROTTLE BODY .
• Refer to PARTIALLY LOOSENING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to REMOVING THE ENGINE VENTILATION LINE FROM THE INTAKE SYSTEM .
• Refer to REMOVING THE TANK VENT LINE .
• Refer to REMOVING THE INTAKE PLENUM .
• Refer to REMOVING THE RIGHT-HAND VENTILATION LINE .
• Refer to REMOVING IGNITION COILS .
• Refer to REMOVING COVER FOR THE RIGHT DME CONTROL UNIT .
• Refer to DISCONNECTING ALL CONNECTORS FROM THE DME CONTROL UNIT FOR CYLINDERS 1 TO 6 AND FROM THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to PARTIALLY RELEASING THE WIRING HARNESS FROM RIGHT CYLINDER HEAD COVER .
• Refer to REMOVING TOP RIGHT CLEAN AIR PIPE .
• Refer to REMOVING RIGHT CHARGE AIR PIPE .
• Refer to REMOVING THE RIGHT HIGH-PRESSURE LINE BETWEEN THE HIGH-PRESSURE PUMP AND THE HIGH-PRESSURE RAIL .
• Refer to REMOVING FUEL DELIVERY LINE .
• Refer to REMOVING ALL HIGH PRESSURE LINES BETWEEN RAIL AND INJECTORS .
• Refer to REMOVING RIGHT RAIL .
• Refer to REMOVING RIGHT HIGH-PRESSURE PUMP .
• Refer to REMOVING INJECTORS .
• Refer to REMOVING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .
• Refer to REMOVING THE STIFFENING PLATE .
• Refer to REMOVING THE CENTER TOP CROSS CONNECTION .
• Refer to DRAINING COOLANT .
• Refer to RELEASING COOLANT FEED LINE FOR THE RIGHT EXHAUST TURBOCHARGER .

Screw connection of the cylinder head cover on right

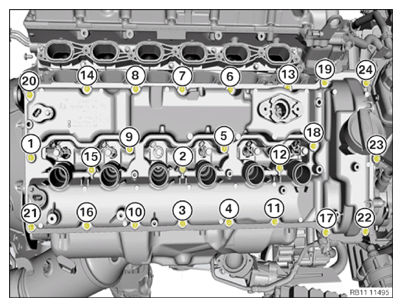

Fig 1: Right Cylinder Head Cover Screws Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

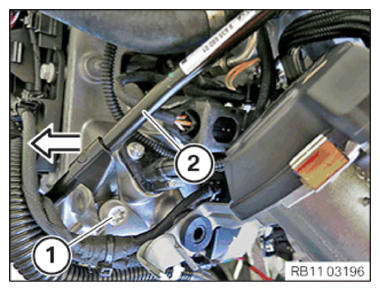

• Loosen screw (1)  on the guide tube for the oil dipstick.
• Turn guide tube for the oil dipstick (2)  in direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

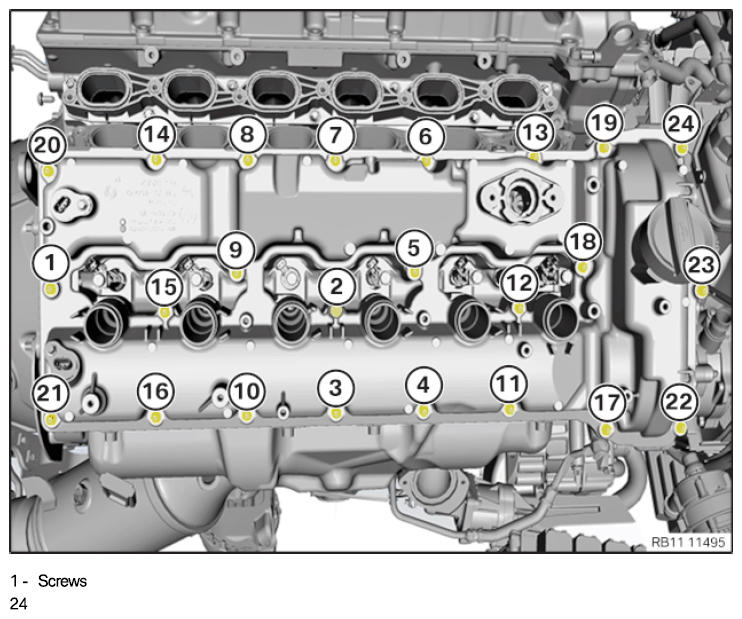

• Release the screws of the cylinder head cover in the order (24)  to (1)  .
  Fig 2: Right Cylinder Head Cover Screws Loosening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.

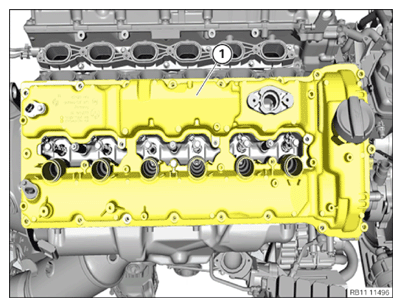

• Remove the cylinder head cover (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
