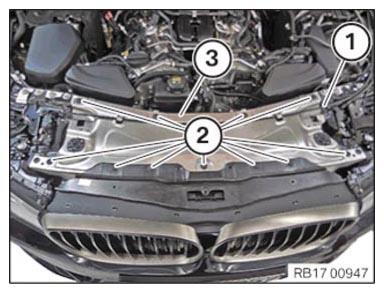

Remove the center top cross connection
Remove the center top cross connection
Detach the cable
(1)
.
Loosen screws
(2)
.
Remove the top center cross connection
(3)
.
