Disconnecting all connectors from the DME control unit for cylinders 1 to 6 and from the integrated power supply module (PDM)
WARNING:
Working on 12 V electrical system.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
TECHNICAL INFORMATION
If control units are disconnected, fault memory entries and functional limitations may occur.
The fault memory entries must be read out and, if necessary, deleted.
If control units are disconnected, fault memory entries and functional limitations may occur.
The fault memory entries must be read out and, if necessary, deleted.

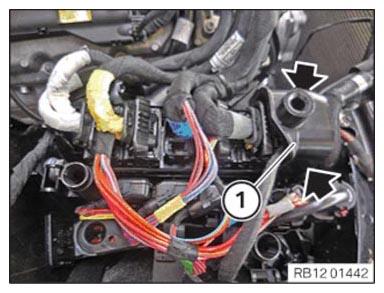

- Unlock the locks (arrows).
- Remove the cover (1)
.

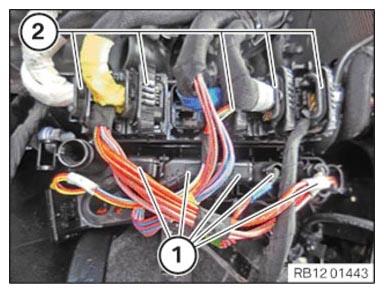

- Unlock and detach all connectors (1) from the integrated power supply module (PDM).
- Unlock all connectors (2) from front to back and unplug them from the DME control unit.
