Remove right air duct
Remove right air duct

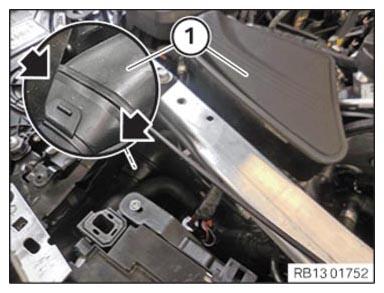

Unlock the locks (arrows) on the left and right of the air duct
(1)
.
Detach the air duct
(1)
from the intake port and remove it towards the rear.
Courtesy of BMW OF NORTH AMERICA, INC.
