Installing transmission wiring harness

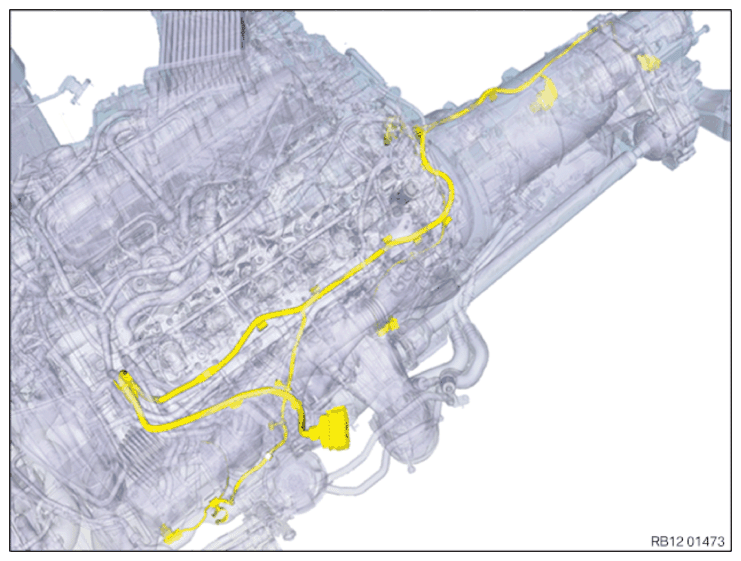

Transmission wiring harness

Courtesy of BMW OF NORTH AMERICA, INC.

Precondition

Ignition is switched off.

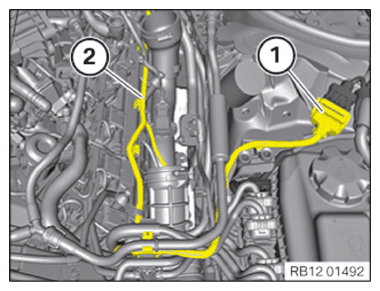

• Install the transmission wiring harness (2)  and fasten it with the clamps.
• Attach and lock the connector (1)  .

  The connector must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

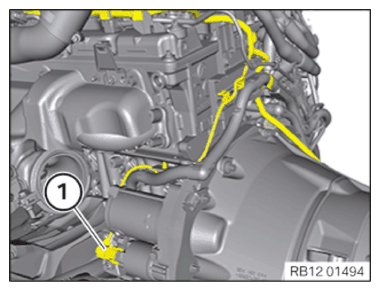

• Install the transmission wiring harness and fasten it with the clamps.
• Secure the ground cable to the grounding point with the bolt (1)  .
• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

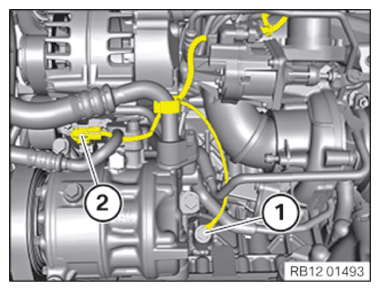

• Plug the connector (2)  into the air conditioning compressor and lock.

  The connector must engage audibly.

• Install the transmission wiring harness and fasten it with the clamps.
• Plug the connector (1)  into the starter motor and lock.

  The connector must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

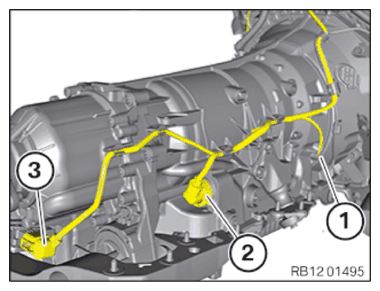

• Install the transmission wiring harness and fasten it with the clamps.
• Secure the ground cable to the grounding point with the bolt (1)  .
• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Plug the connector (2)  into the transmission and lock.

  The connector must engage audibly.

• Plug the connector (3)  into the transfer box control unit and lock.

  The connector must engage audibly.

Follow-up work

• Refer to INSTALLING THE LEFT ENGINE SUPPORT BRACKET .
• Refer to INSTALLING THE HEAT SHIELD ON THE STARTER MOTOR .
• Refer to INSTALLING THE CATALYTIC CONVERTER FOR CYLINDERS 7 TO 12 .
• Refer to CONNECTING THE HYDRAULIC LINES .
• Refer to INSTALLING TRANSMISSION CROSS MEMBER .
• Refer to INSTALLING FRONT AXLE COMPLETELY .
• Refer to SECURING THE HOLDER ON THE FRONT AXLE SUPPORT .
• Refer to RAISING FRONT AXLE SUPPORT .
• Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
• Refer to ATTACHING SWIVEL BEARING IN INSTALLATION POSITION .
• Refer to REMOVING THE MOBILE LIFTING TABLE .
• Refer to CHECK/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION (GA8HP95Z) .
• Refer to ATTACHING COOLANT HOSES TO FRONT SUBFRAME .
• Refer to ATTACHING THE THERMOSTAT OR TRANSMISSION OIL COOLER LINE ON THE FRONT SUBFRAME .
• Refer to REMOVING THE SECURING TOOL OF THE ENGINE IN INSTALLATION POSITION .
• Refer to ATTACHING THE UNIVERSAL JOINT TO STEERING GEAR .
• Refer to INSTALLING THE UNIVERSAL JOINT AT THE BOTTOM OF THE STEERING SHAFT .
• Refer to INSTALLING THE OUTPUT SHAFTS .
• Refer to IF INSTALLED: CONNECTING THE CONNECTOR OF THE ACTIVE STABILIZER .
• Refer to IF INSTALLED: SECURING THE LINE FOR THE VERTICAL ACCELERATION SENSOR ON THE RIGHT AND LEFT .
• Refer to ATTACHING THE CABLE OF THE WHEEL RPM SENSOR ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE BRAKE CALIPER AT THE FRONT LEFT AND RIGHT .
• Refer to SECURING THE RIGHT AND LEFT OUTPUT SHAFTS ON THE WHEEL BEARING .
• Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE STATIONARY HEATING .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to INSTALLING THE REINFORCEMENT STRUT ON THE RIGHT ENGINE MOUNT .
• Refer to INSTALLING REAR UNDERBODY PROTECTION .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to INSTALLING THE LEFT LAMBDA OXYGEN SENSOR .
• Refer to INSTALLING CHARGE AIR PIPE ON LEFT .
• Refer to INSTALLING THE LEFT THROTTLE BODY .
• Refer to INSTALLING TOPPING CLEAN AIR PIPE ON LEFT .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to SECURING THE AIR SUSPENSIONS STRUTS IN THE FRONT .
• Refer to INSTALLING THE LATERAL HOOD SEALS .
• Refer to INSTALLING THE MOUNT OF THE HOOD SEAL .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to RESETTING THE TIRE PRESSURE MONITOR .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to INSTALLING BOTH TRIM PIECES FOR THE EXHAUST TAILPIPE .
• Refer to INSTALLING THE TRIM ON THE REAR BUMPER PANEL .
• Refer to INSTALLING THE REAR DIFFUSER .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
