Installing the brake caliper at the front left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

• Loosen the special tool 2 413 317  from the brake caliper (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

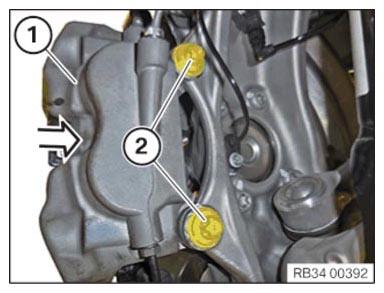

• Install the brake caliper (1)  in the arrow direction.
• Replace screws (2)  .

  Parts:  Screws

• Tighten down screws (2)  .
  TIGHTENING TORQUES SPECIFICATION



  Brake caliper/brake anchor plate at front swivel bearing
  M12 Replace screw.	tightening torque	130 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

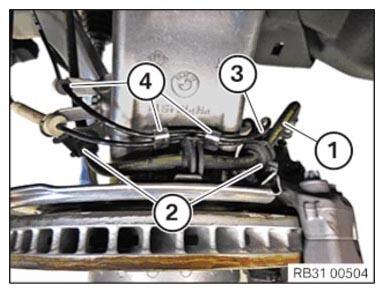

• Hook the cable (3)  for the brake pad wear sensor into the holder (4)  .
• Hook the brake hose (1)  into the holder (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.
