Attaching the cable of the wheel RPM sensor on the left and right

NOTE: Perform the steps on the right and left side.

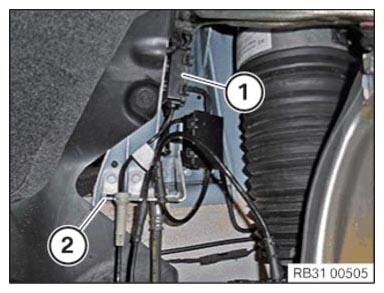

• Attach cable of wheel RPM sensor to holder (2)  .
• Connect connector of wheel RPM sensor.
• Close sealing cap (1)  .
