Attaching swivel bearing in installation position

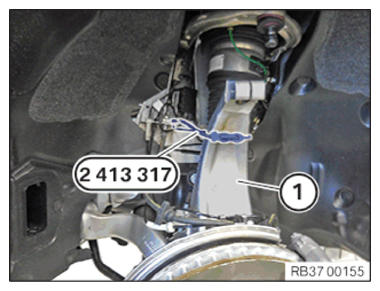

Attach swivel bearing in installation position (1) with special tool 2 413 317 .
Do not allow the swivel bearing (1) to tilt outward or to hang down from the brake hose.

Courtesy of BMW OF NORTH AMERICA, INC.
