Raising the front subframe

• Carefully raise the front axle support with the universal jack 2 219 012 and position on the body.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screws (1)  .

  Parts:  Screws

• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Front subframe on front/center of body
  M12 Replace screws.	tightening torque	108 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screws (2)  .

  Parts:  Screws

• Tighten down screws (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Front axle carrier to body, rear
  M14 Replace screws.	tightening torque	175 Nm

• Position the adapter for the front subframe on the front subframe.
• Tighten down screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Adapter, front axle support to front axle support
  M8x70	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lower the universal jack 2 219 012 and place to one side.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the left-hand and right-hand crash lever

• Version A:

  Position the crash lever (3)  on the front subframe.

  Tighten screws (1)  and (2)  .

  TIGHTENING TORQUE SPECIFICATION



  Crash lever on frame/adapter of front subframe
  M14	tightening torque	100 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Version B:

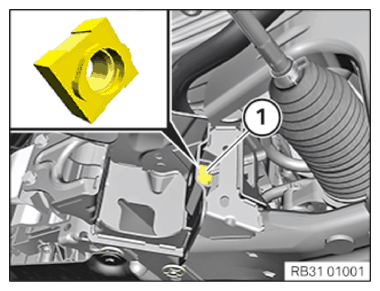

  Replace the cage nut (1)  .

  Parts:  Cage nut

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Tighten the screw connection in the NORMAL POSITION .
• Position the tension strut and crash lever (2)  on the front subframe.
• Replace the screw (1)  .

  Parts:  Screw

• Feed in screw (1)  and tighten hand-tight.

  The screw connection is tightened later in NORMAL POSITION .

  Courtesy of BMW OF NORTH AMERICA, INC.

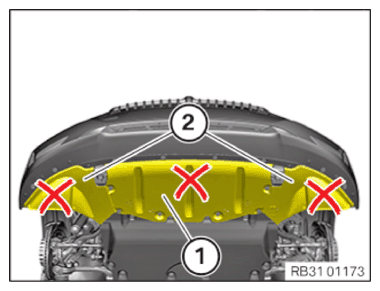

• On version B:  Install the front underbody protection (1)  and the lower wheel arch covers (2) only after tightening  the threaded connection of the tension strut at the front subframe.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see: TIGHTENING THE SCREW CONNECTION OF THE TENSION STRUT ON THE FRONT SUBFRAME .

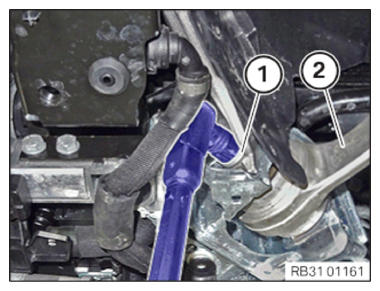

• Tighten the screw (1)  of the tension strut (2)  on the front subframe in NORMAL POSITION only following the follow-up work  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
• Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE PARKED-CAR HEATING .
• Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .
• Position the line.

  Clip the line into the bracket (2).

  Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to IF INSTALLED: INSTALL UNDERBODY PROTECTION FOR THE STEERING .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to TAKING ENGINE OUT OF INSTALLATION ORIENTATION .
• Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
