Tightening the screw connection of the tension strut on the front subframe

NOTE: TECHNICAL INFORMATION
Tighten the screw connection in the NORMAL POSITION .

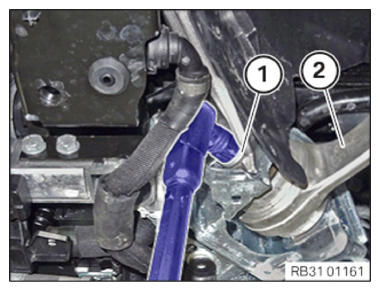

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATION

Tension strut to front axle support
M12 Replace bolt and cage nut. Tighten in normal position.	Tightening torque 68 Nm
M12 Replace bolt and cage nut. Tighten in normal position.	Angle of rotation 180°

Courtesy of BMW OF NORTH AMERICA, INC.
