Refitting engine oil pan

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove fine seal remains on the sealing surface (1)  of the oil pan with the special tool 0 495 102 (11 4 470)  .
• Clean the sealing surface (1)  .
  CONSUMABLE DESCRIPTION



  Brake cleaner 2.0	500 ml, Spray can	83192365214
  	20, Canister	83192365215

  NOTE: RISK OF DAMAGE
  Damage to the surface  .
  The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage  .

  • Do not use any metal-cutting tools.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The sealing surfaces must be free of oil, grease and cleaning agents.
• Remove rough seal remains on the sealing surface (1)  of the crankcase with the special tool 0 495 102 (11 4 470)  .
• Clean the sealing surface (1)  .
  CONSUMABLE DESCRIPTION



  Brake cleaner 2.0	500 ml, Spray can	83192365214
  	20, Canister	83192365215

• Have the special tool 2 469 803  ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) .
• Position the sealing compound (1)  as shown on the special tool 2 469 803  .

  Parts:  Sealing compound

  Courtesy of BMW OF NORTH AMERICA, INC.

  SEALING COMPOUND SPECIFICATIONS



  Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature

  50 ml, Cartridge

  83190404517

  NOTE: TECHNICAL INFORMATION
  The processing time of the liquid sealing compound can be at a maximum of 10 min.
  Commissioning of the assembly is not possible until 25 minutes after the processing time.
  Non-observance can lead to leaks in the assembly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Apply the sealing compound (1)  along the line with a height of 2 mm to 2.5 mm.
  NOTE: Apply the sealing compound along the inner edge.

  • Completely encircle the oil return orifice (arrow) with the sealing compound.
  NOTE: TECHNICAL INFORMATION
  The special tool 11 8 780 is only required when the transmission is removed.
• Position the special tool 0 496 120 (11 8 780)  with the transmission bolts (1)  so that the oil pan is exactly flush with engine block.
• If necessary, replace lining sleeves.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Improper screw length can cause component damage  .
  The use of screws of improper length can lead to component damage  .

  • Note the correct screw length.
  • Install screws that correspond to the original length.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Ensure that the correct (2)  screw (M8 x 40) is used to attach the oil pan to the transmission.

  The (1)  screw (mounting bolt of the starter) must never  be used to attach the oil pan.

• Install oil pan (1)  toward the top front.
• Tighten all bolts of the oil pan hand-tight  , do not tighten completely.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (1)  to (7)  .
  TIGHTENING TORQUE SPECIFICATION



  Oil sump to crankcase
  M8x30	Tightening torque	24 Nm
  M8x110	Tightening torque	24 Nm

  Fig 1: Oil Sump Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
• Tighten the screws (1)  to (7)  .
  TIGHTENING TORQUE SPECIFICATION



  Oil sump to crankcase
  M8x30	Tightening torque	24 Nm
  M8x110	Tightening torque	24 Nm

  Fig 2: Oil Sump Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
• Tighten the screws (1)  , (2)  and (3)  .
  TIGHTENING TORQUE SPECIFICATION



  Oil sump to crankcase
  M8x30	Tightening torque	24 Nm
  M8x110	Tightening torque	24 Nm

  Fig 3: Oil Sump Screws Tightening Sequence

  Courtesy of BMW OF NORTH AMERICA, INC.
• Tighten down screws (1)  and (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Oil sump to crankcase
  M8x30	Tightening torque	24 Nm
  M8x110	Tightening torque	24 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

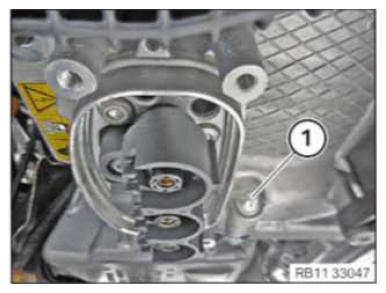

• Tighten transmission screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Transmission to oil pan (manual transmission and automatic transmission)
  M8x50	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

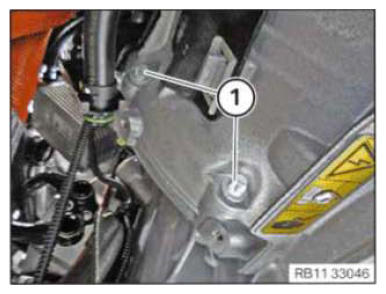

• Tighten transmission screws (1)  .
  TIGHTENING TORQUE SPECIFICATION



  Transmission to oil pan (manual transmission and automatic transmission)
  M8x50	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Fasten cable on the clips (2)  of the oil pan.
• Connect connectors (1)  and lock.
• Make sure the connector (1)  engages audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING STARTER MOTOR .
• Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL PAN .
• Refer to INSTALLING THE HOLDER FOR THE THERMOSTAT ON THE TRANSMISSION OIL LINES .
• Refer to INSTALLING THE THERMOSTAT ON THE TRANSMISSION OIL LINES .
• Refer to RAISING THE FRONT AXLE SUPPORT .
• Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
• Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .
• Position the line.

  Clip the line into the bracket (2).

  Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT LEFT AND RIGHT WHEELS .
• Refer to REMOVING THE ENGINE FROM THE INSTALLATION POSITION .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE LEFT SHOCK TOWER .
• Refer to FASTENING THE WIRING HARNESS SECTION TO THE RIGHT SHOCK TOWER .
• Refer to INSTALLING THE SIDE PANEL SEAL .
• Refer to INSTALLING THE LATERAL HOOD SEALS .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
• Refer to TOPPING UP THE MOTOR OIL .
• Refer to CONNECTING NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to IF INSTALLED: INSTALL UNDERBODY PROTECTION FOR THE STEERING .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
