Installing dashboard trim
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
- Protect surfaces from damage.

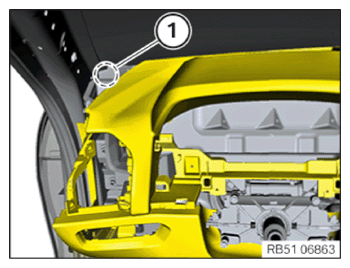

- Tighten the screw (1) on left and right in the area of the A-pillar.
TIGHTENING TORQUE SPECIFICATION
| Dashboard to support | ||
|---|---|---|
| Screw | tightening torque | 2.3 Nm |

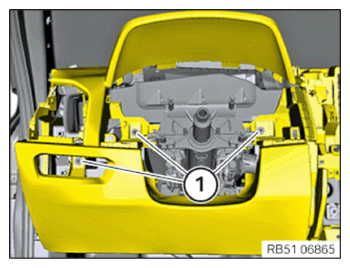

- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Dashboard to support | ||
|---|---|---|
| Screw | tightening torque | 2.3 Nm |

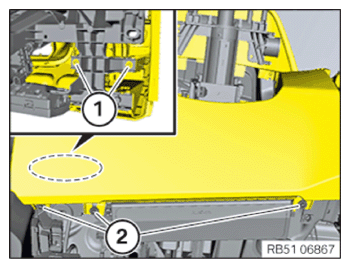

- Tighten down screws (1) and (2) .
TIGHTENING TORQUE SPECIFICATION
| Dashboard to support | ||
|---|---|---|
| Screw | tightening torque | 2.3 Nm |

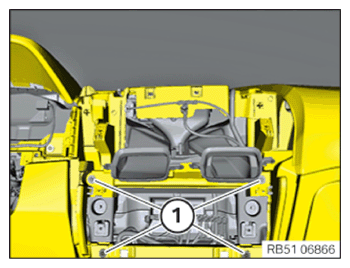

- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Dashboard to support | ||
|---|---|---|
| Screw | tightening torque | 2.3 Nm |
- Connect and lock all of the connectors and fasten them into the cable bracket.
- Tighten the screws (1) from the back at the rear of the glove compartment.
TIGHTENING TORQUE SPECIFICATION
| Dashboard to support | ||
|---|---|---|
| Screw | tightening torque | 2.3 Nm |

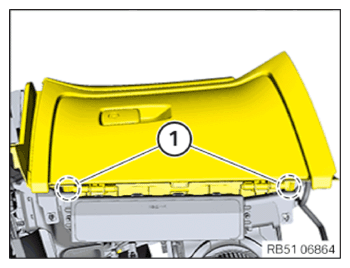

- Open glovebox.
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATION
| Dashboard to support | ||
|---|---|---|
| Screw | tightening torque | 2.3 Nm |
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

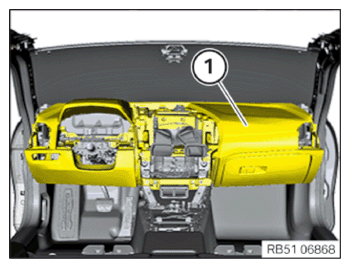

- Place the dashboard trim (1) in the vehicle.
- Carefully feed in the dashboard trim (1)
; while doing this, feed in the wiring harness and fasten it.
Connect connectors and lock.
- Position the dashboard trim (1) correctly.
Follow-up work
- Refer to INSTALLING THE MID-RANGE SPEAKERS IN THE DASHBOARD .
- Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
- Refer to INSTALLING THE HEAD UNIT HIGH (HU-H) (WITH BRACKET) .
- Refer to INSTALLING THE LIGHT OPERATING UNIT .
- Refer to REMOVING THE DECORATIVE STRIP FROM THE LEFT AND RIGHT DASHBOARD .
- Refer to INSTALLING THE SIDE COVER ON THE DASHBOARD AT LEFT AND RIGHT .
- Refer to INSTALLING THE TRIM FOR THE HEAD-UP DISPLAY .
- Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
- Refer to INSTALLING THE CENTER CONSOLE .
- Refer to INSTALLING RIGHT FOOTWELL TRIM .
- Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
- Refer to INSTALLING THE CENTER STACK MODULE .
- Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
- Refer to INSTALLING THE CUP HOLDER .
- Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
- Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
- Refer to INSTALLING CENTER ARMREST .
- Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
- Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
- Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
- Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to INSTALLING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
- Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
- Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
- Refer to CHECKING THE AIRBAG FOR FUNCTION .
