Replacing the support for the instrument panel

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to SUCTIONING THE AIR CONDITIONING .
Refer to ADJUSTING THE STEERING COLUMN POSITION .
Refer to REMOVING THE TRIM FOR THE HEAD-UP DISPLAY .
Refer to REMOVING CUP HOLDER .
Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT TRIM .
Refer to REMOVING THE CENTER CONSOLE TRIM .
Refer to REMOVING THE DECORATIVE TRIM ON THE CENTER CONSOLE ON THE LEFT AND RIGHT .
Refer to REMOVING THE WIRELESS CHARGING STORAGE .
Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .
Refer to REMOVING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
Refer to REMOVING THE CENTER CONSOLE .
Refer to REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .
Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
Refer to REMOVING LEFT FOLD-OUT COMPARTMENT .
Refer to REMOVING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to REMOVING RIGHT FOOTWELL TRIM .
Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
Refer to REMOVING AIRBAG UNIT (M SPORT STEERING WHEEL) .
Refer to REMOVING THE STEERING WHEEL/M SPORT STEERING WHEEL .
Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
Refer to REMOVING STEERING COLUMN SHROUD LOWER SECTION .
Refer to REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
Refer to REMOVING THE INSTRUMENT CLUSTER (KOMBI) .
Refer to REMOVING THE AUDIO CONTROL UNIT .
Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
Refer to REMOVING THE SPEAKER HOLDER ON THE DASHBOARD .
Refer to REMOVING THE TRIM PANEL FOR THE DASHBOARD .
Refer to REMOVING DOOR SILL COVER STRIP, INTERIOR RIGHT .
Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE RIGHT-HAND A-PILLAR .
Refer to REMOVING KNEE AIRBAG .
Refer to REMOVING LEFT AIR DUCT .
Refer to REMOVING THE HEAD-UP DISPLAY .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING WINDSHIELD PANEL COVER .
Refer to REMOVING THE CENTER COWL UPPER PART .
Refer to REMOVING THE CENTER BULKHEAD LOWER PART .
Refer to REMOVING SUSPENSION STRUT BRACE .
Refer to RELEASING THE CONTROL UNIT HOLDER .
Refer to DISCONNECTING REFRIGERANT LINE ON THE CONNECTING PIECE .
Refer to OPENING THE PRESSURE LINE HOLDER .
Refer to REMOVING THE REFRIGERANT LINE FROM THE AIR CONDITIONING CONDENSER .
Refer to DISCONNECTING THE REFRIGERANT LINE FROM THE EXPANSION VALVE .
Refer to REMOVING THE SUPPORT FOR THE DASHBOARD .

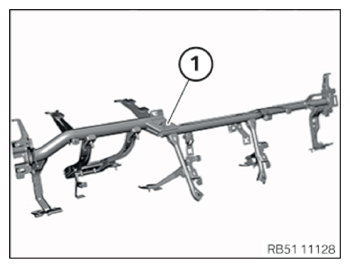

Replace the support for the instrument panel (1) .
Parts: Support for the instrument panel
Remount the wiring harness on the new support for the instrument panel (1) .
Remount small parts and bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE SUPPORT FOR DASHBOARD .
Refer to CONNECTING THE REFRIGERANT LINE TO THE EXPANSION VALVE .
Refer to ATTACHING THE REFRIGERANT LINE TO THE AIR CONDITIONING CONDENSER .
Refer to CLOSING THE PRESSURE LINE HOLDER .
Refer to SECURING THE REFRIGERANT LINE TO THE CONNECTING PIECE .
Refer to ATTACHING THE CONTROL UNIT HOLDER .
Refer to INSTALLING THE STRUT BRACE .
Refer to INSTALLING CENTER BULKHEAD LOWER PART .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR HOOD SEAL .
Refer to INSTALLING THE HEAD-UP DISPLAY .
Refer to INSTALLING LEFT AIR DUCT .
Refer to INSTALLING KNEE AIRBAG .
Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
Refer to INSTALLING INSIDE RIGHT DOOR SILL COVER STRIP .
Refer to INSTALLING THE TRIM PANEL FOR THE DASHBOARD .
Refer to INSTALLING THE SPEAKER HOLDER ON THE DASHBOARD .
Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
Refer to INSTALLING AUDIO CONTROL UNIT .
Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
Refer to INSTALLING STEERING COLUMN SHROUD LOWER SECTION .
Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
Refer to INSTALLING THE STEERING WHEEL/M SPORT STEERING WHEEL .
Refer to INSTALLING THE AIRBAG UNIT (M SPORT STEERING WHEEL) .
Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
Refer to INSTALLING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Refer to INSTALLING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to INSTALLING RIGHT FOOTWELL TRIM .
Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
Refer to INSTALLING THE CENTER CONSOLE .
Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
Refer to INSTALLING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
Refer to INSTALLING THE OPERATING FACILITY IN THE CENTER CONSOLE .
Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
Refer to INSTALLING THE DECORATIVE TRIM ON THE LEFT AND RIGHT OF THE CENTER CONSOLE .
Refer to INSTALLING THE CENTER CONSOLE TRIM .
Refer to INSTALLING TRIM IN STORAGE COMPARTMENT OF CENTER ARMREST .
Refer to INSTALLING THE CUP HOLDER .
Refer to INSTALLING THE TRIM FOR THE HEAD-UP DISPLAY .
Refer to EVACUATING AND CHARGING CONDITIONING .
