Section 201 (Body Equipment -- Repair M4 (1 Of 2) (G82 & G83))
>>
51 16 Mirrors, Decorative Strips, Ashtrays, Consoles
>>
51 16 355 Removing and installing/replacing driver's side fold-out compartment (M4 2021-2023)
>>
Install fold-out compartment on the left
Install fold-out compartment on the left
WARNING:
This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

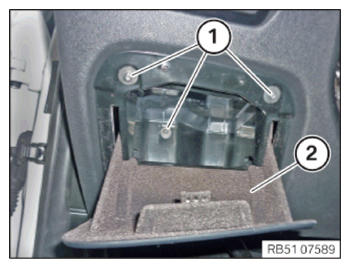

Install the fold-out compartment (2).
Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
Fold-out compartment on dashboard
Oval-head screw
tightening torque
1.8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
