Remove the support for the dashboard

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Preliminary work

Refer to SUCTIONING THE AIR CONDITIONING .
Refer to ADJUSTING THE STEERING COLUMN POSITION .
Refer to REMOVING THE TRIM FOR THE HEAD-UP DISPLAY .
Refer to REMOVING CUP HOLDER .
Refer to REMOVING THE CENTER ARMREST STORAGE COMPARTMENT TRIM .
Refer to REMOVING THE CENTER CONSOLE TRIM .
Refer to REMOVING THE DECORATIVE TRIM ON THE CENTER CONSOLE ON THE LEFT AND RIGHT .
Refer to REMOVING THE WIRELESS CHARGING STORAGE .
Refer to REMOVING THE OPERATING FACILITY IN THE CENTER CONSOLE .
Refer to REMOVING THE STORAGE COMPARTMENT IN THE FRONT CENTER CONSOLE .
Refer to REMOVING THE REAR CENTER CONSOLE TRIM .
Refer to REMOVING THE CENTER CONSOLE .
Refer to REMOVING THE SIDE PANEL ON THE LEFT DASHBOARD .
Refer to REMOVING THE SIDE PANEL ON THE RIGHT DASHBOARD .
Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
Refer to REMOVING THE TRIM PANEL FOR PEDAL ASSEMBLY .
Refer to REMOVING LEFT FOLD-OUT COMPARTMENT .
Refer to REMOVING THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to REMOVING RIGHT FOOTWELL TRIM .
Refer to REMOVING THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Refer to REMOVING CENTRAL INFORMATION DISPLAY (CID) .
Refer to REMOVING AIRBAG UNIT (M SPORT STEERING WHEEL) .
Refer to REMOVING THE STEERING WHEEL/M SPORT STEERING WHEEL .
Refer to REMOVING STEERING COLUMN SHROUD UPPER SECTION .
Refer to REMOVING STEERING COLUMN SHROUD LOWER SECTION .
Refer to REMOVING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
Refer to REMOVING THE INSTRUMENT CLUSTER (KOMBI) .
Refer to REMOVING THE AUDIO CONTROL UNIT .
Refer to REMOVING THE SPEAKER TRIM AT THE DASHBOARD .
Refer to REMOVING THE SPEAKER HOLDER ON THE DASHBOARD .
Refer to REMOVING THE TRIM PANEL FOR THE DASHBOARD .
Refer to REMOVING DOOR SILL COVER STRIP, INTERIOR RIGHT .
Refer to REMOVING THE SIDE TRIM PANEL IN THE FOOTWELL AT THE RIGHT-HAND A-PILLAR .
Refer to REMOVING KNEE AIRBAG .
Refer to REMOVING LEFT AIR DUCT .
Refer to REMOVING THE HEAD-UP DISPLAY .
Refer to REMOVING THE SEAL FOR THE HOOD REAR .
Refer to REMOVING THE COVER OF THE ENGINE COMPARTMENT AT THE REAR LEFT .
Refer to REMOVING THE COVER OF THE REAR RIGHT ENGINE COMPARTMENT .
Refer to REMOVING LEFT AND RIGHT WIPER ARM .
Refer to REMOVING WINDSHIELD PANEL COVER .
Refer to REMOVING THE CENTER COWL UPPER PART .
Refer to REMOVING THE CENTER BULKHEAD LOWER PART .
Refer to REMOVING SUSPENSION STRUT BRACE .
Refer to RELEASING THE CONTROL UNIT HOLDER .
Refer to DISCONNECTING REFRIGERANT LINE ON THE CONNECTING PIECE .
Refer to OPENING THE PRESSURE LINE HOLDER .
Refer to REMOVING THE REFRIGERANT LINE FROM THE AIR CONDITIONING CONDENSER .
Refer to DISCONNECTING THE REFRIGERANT LINE FROM THE EXPANSION VALVE .

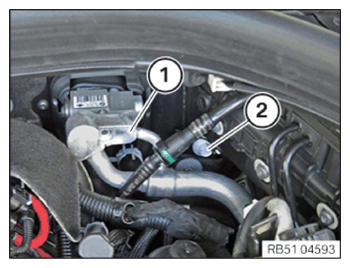

Push the refrigerant line (1) slightly to one side and loosen the screw (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Push the carpet in the area of the right B-pillar to the side.

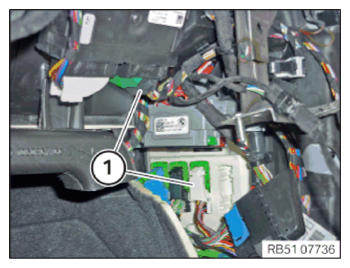

Unlock and disconnect plug connections (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

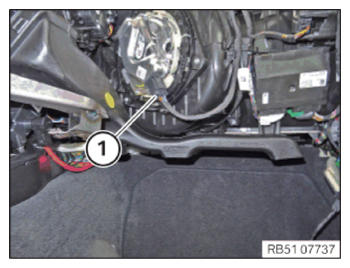

Unlock and disconnect the plug connection (1) on the blower motor.

Courtesy of BMW OF NORTH AMERICA, INC.

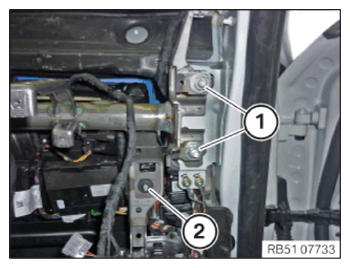

Loosen nuts (1) and (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

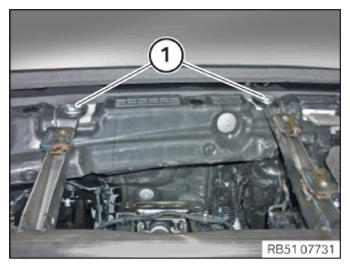

Loosen nuts (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

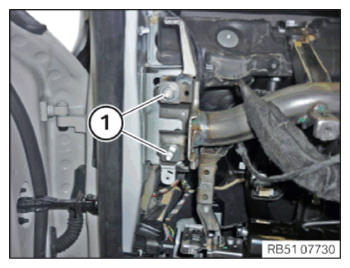

Loosen screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Release the nut (1) in the footwell at left on the heating and air-conditioning unit.

Courtesy of BMW OF NORTH AMERICA, INC.
Release plug connection (1) .
Release the wiring harness (2) from the steering column.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Secure component against falling.

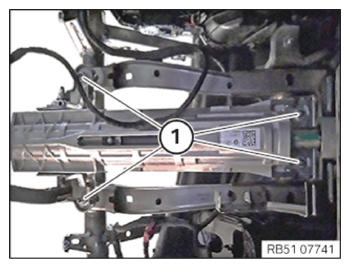

Release the nuts (1) on the steering column.
Lower the steering column (1) a little and support in the footwell.
Do not lower the steering column too much and be sure to support it.

Courtesy of BMW OF NORTH AMERICA, INC.

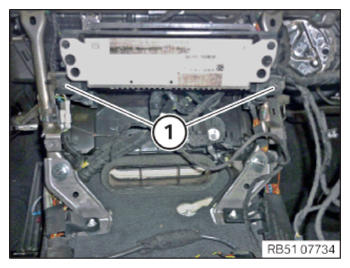

Loosen screws (1) .
Feed out the Headunit High.

Courtesy of BMW OF NORTH AMERICA, INC.

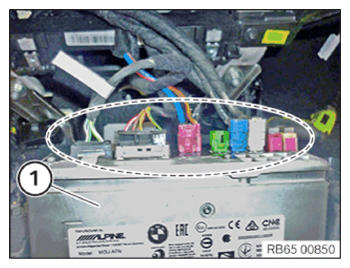

Unlock all connectors in marked area and disconnect.
Remove the head unit (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

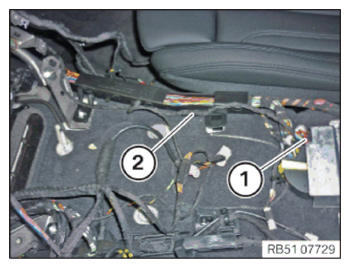

Unlock and disconnect the plug connection (1) on the airbag control unit.
Release the wiring harness (2) at the holders.

Courtesy of BMW OF NORTH AMERICA, INC.

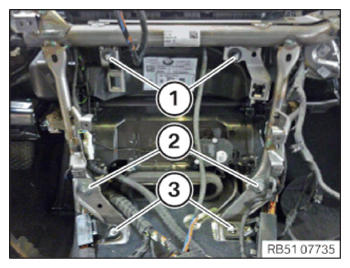

Loosen nuts (1) .
Loosen nuts (2) .
Remove the cable bracket and release the nuts (3) .
Remove the left and right angle brackets.
Carefully feed out the support for the dashboard to the rear.
If necessary, unlock and disconnect additional plug connections.
Carefully remove the support for the dashboard from the vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.
