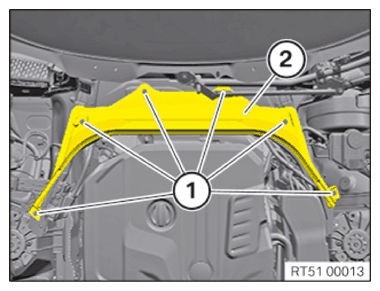

Install upper section of cowl sound insulation

• Position upper section (2)  of cowl sound insulation.
• Tighten the screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Sound insulation of cowl upper part to cowl lower part
  Hexagon screw, TS5 x 20	Tightening torque	2.6 Nm

Follow-up work

• Refer to INSTALLING THRUST FIELD ON THE SHOCK TOWER .
• Refer to INSTALLING THE COMPLETE REAR HOOD SEAL .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
