Installing the front end

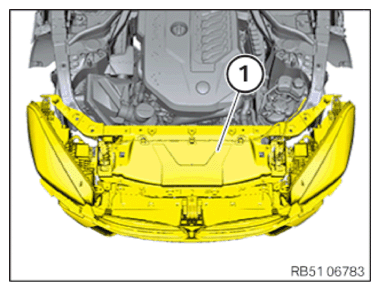

• Carefully feed in and correctly position the front end.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.
• Tighten down screws (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Rear cross connection on wheel well carrier support
  M10x25 screw	tightening torque	56 Nm

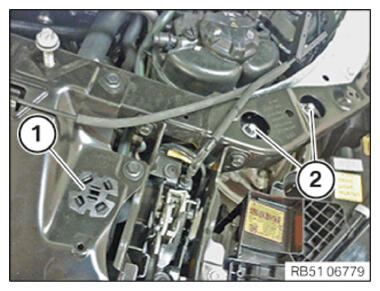

• Install and lock the cooler module mount (1)  .

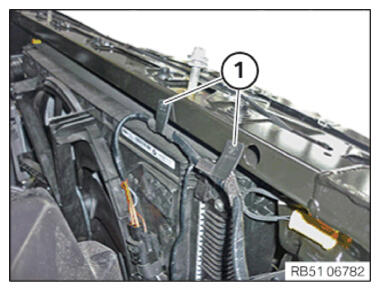

• Secure the cable bracket (1)  to the front end.

  Courtesy of BMW OF NORTH AMERICA, INC.

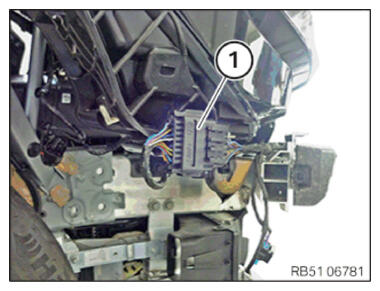

• Connect and lock the plug connector (1)  alongside the right-hand headlamp.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

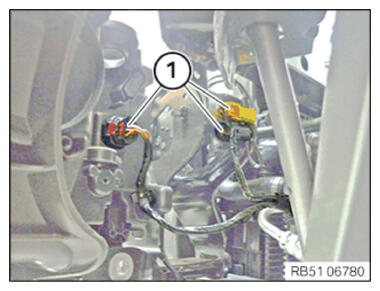

• Connect and lock the plug connectors (1)  for the headlamp and the hood latch.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

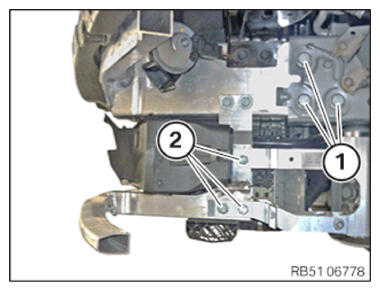

• Tighten down screws (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUE SPECIFICATION



  Deformation element to body
  Hexagon screw with flange	Tightening torque	100 Nm
  Replace screws.	Angle of rotation	180°

• Tighten down screws (2)  .
  TIGHTENING TORQUE SPECIFICATION



  Support for bumper cover, front bottom, to holder
  Hexagon screw M8x60	Tightening torque	28 Nm

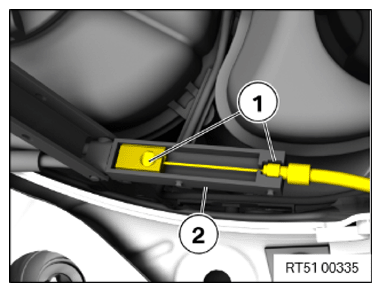

• Attach the Bowden cable for the hood locks (1)  in the Bowden cable bracket (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

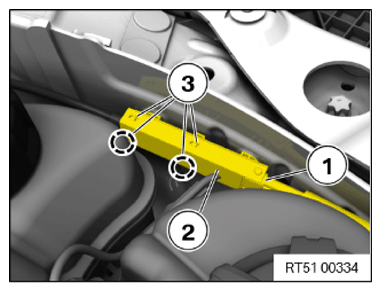

• Clip in the Bowden cable bracket (1)  into the body.
• Close the lid (2)  and engage with the retaining lugs (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING COVERS AT FRONT BOTTOM ON LEFT AN RIGHT SIDES .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING FRONT BUMPER COVER .
• Refer to INSTALLING FRONT RADIATOR GRILL .
• Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT HOOD SEAL .
• Refer to INSTALLING THE SEAL FOR THE HOOD GASKET LEFT AND RIGHT .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
