(Installing the front section of the front wheel arch cover on the left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

• Installing the front section of the front wheel arch cover

Courtesy of BMW OF NORTH AMERICA, INC.

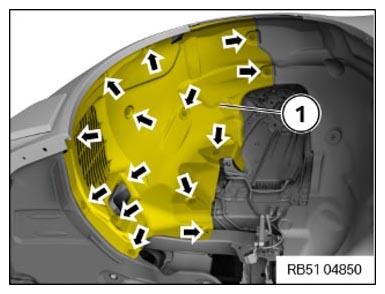

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

• Position front section (1) of front wheel arch cover and tighten screws (arrows).
  (TIGHTENING TORQUES SPECIFICATION)



  Wheel arch cover
  Screw	Tightening torque	2.6Nm
  Nut	Tightening torque	2.6Nm
