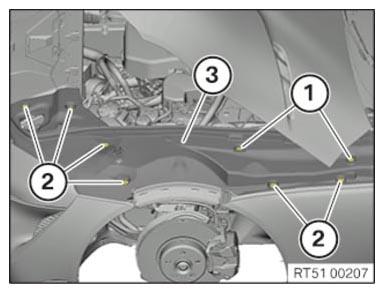

(Installing the seal for the hood gasket left and right)

NOTE: Description is for left component only. Procedure on the right side is identical.

• Feed in the mounting (3) of the hood seal.
• Ensure correct fit of the mounting (3) for hood seal on all adjoining components.
• Clip in clips (1).
• Mount the expanding rivets (2).

Courtesy of BMW OF NORTH AMERICA, INC.
