(Installing covers at front bottom on left an right sides)

NOTE: Description is for left component only. Procedure on the right side is identical.

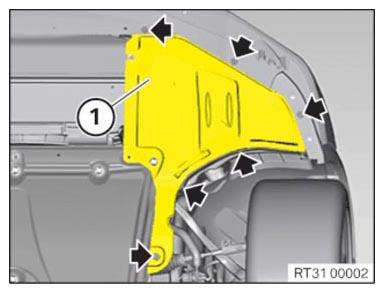

• Guide in front cover (1) underneath on the side.
• Tighten screws (arrows).

(TIGHTENING TORQUES SPECIFICATION)

Lower side cover at front
Screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
