Replace Trunk Lid

Preliminary work

• Refer to REMOVE BOTH TRIM PIECES FOR THE SIDE REAR WINDOW FRAME .
• Refer to REMOVE THE POWER TAILGATE SWITCH .
• Refer to REMOVING THE TRUNK LID LIGHT .
• Refer to REMOVING BOTH TRUNK LID COVERS .
• Refer to REMOVE THE TRIM FOR THE TOP REAR WINDOW FRAME .
• Refer to REMOVE BOTH TRIM PIECES FOR THE SIDE REAR WINDOW FRAME .
• Refer to REMOVE TAILGATE TRIM PANEL .
• Refer to REMOVE REAR SPOILER .
• Refer to REMOVE THE LOWER PART OF THE REAR SPOILER .
• Refer to REMOVE BOTH TAIL LIGHTS FROM THE TRUNK LID .
• Refer to REMOVE VIBRATION ABSORBER ON THE TRUNK LID .
• Refer to REMOVE THE TAILGATE BUTTON .
• Refer to REMOVE BOTH NUMBER PLATE LIGHTS .
• Refer to REMOVE STRIKER FOR TAILGATE LATCH .
• Refer to REMOVE THE WIPER ARM OF THE REAR WIPER .
• Refer to REMOVE REAR WINDOW WIPER MOTOR .
• Refer to REMOVE ANTENNA AMPLIFIER .
• Refer to REMOVE REAR WINDOW .
• Refer to REMOVING THE REAR EMBLEM .

Prerequisite

New part is painted.

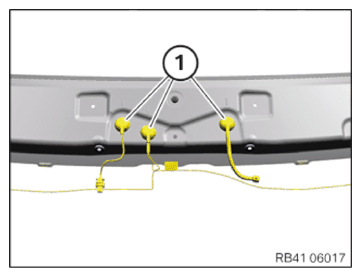

• Feed in the rubber grommets (1) together with the wiring harness.

  Courtesy of BMW OF NORTH AMERICA, INC.

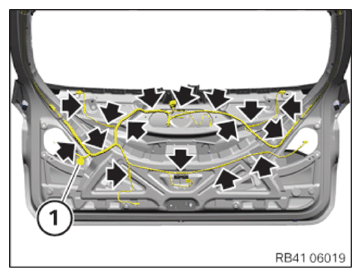

• Release the wiring harness at the marked locations (arrows) and put to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Unlock and disconnect the plug connection (1) for the buzzer.

  Release the wiring harness at the marked locations (arrows).

• Feed out the left and right wiring harness from the tailgate frame and put to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: RISK OF DAMAGE
  Mechanical effects. Paint damage.

  • Mask those working areas at risk with yellow plastic adhesive tape.
  • Remove and install heavy or bulky components with the aid of another person/other persons.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove screws (1) on both sides of vehicle.
• Remove trunk lid.
• Position new tailgate on tailgate hinges.

  Tighten screws (1) on both sides of vehicle.

  TIGHTENING TORQUES SPECIFICATION



  Trunk lid to the hinge
  Hexagon screw M8 Tightening torque
  	28 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Carefully close the trunk lid and check for bodywork contact, repositioning door if necessary.
  NOTE: Description is for left component only. Procedure on the right side is identical.

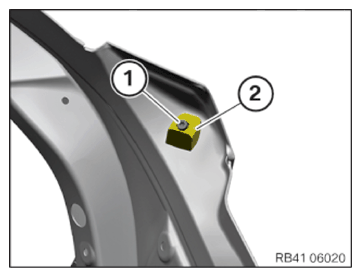

• Loosen screw (1) and remove together with stop pad (2).
• Reposition stop pad (2) on new part.

  Tighten down screw (1).

  TIGHTENING TORQUES SPECIFICATION



  Stop pad to trunk lid
  Screw M6 Tightening torque
  	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

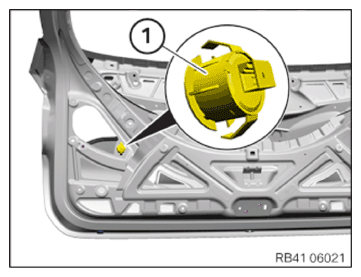

• Remount buzzer (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

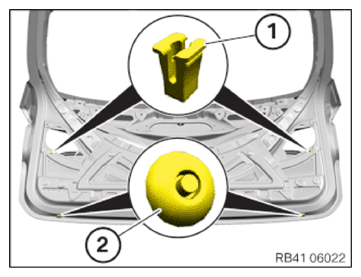

• Remount expansion nuts (1).
• Remount the seal plug (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remount expansion nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

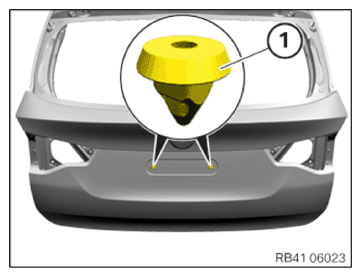

• Remount the seal plug (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

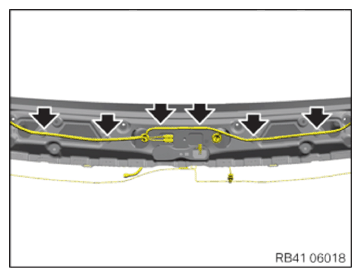

• Fasten vehicle wiring harness at marked locations (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

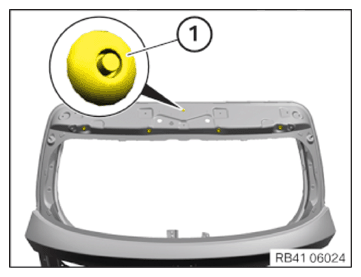

• Feed rubber grommets (1) through outwards together with wiring harness.
• Install rubber grommets (1). While doing this, ensure correct installation (water tightness).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the wiring harness into the tailgate frame on the left and right.
• Fasten vehicle wiring harness at marked locations (arrows).
• Connect the connector (1) for the buzzer and lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.
