Remove rear window

NOTE: TECHNICAL INFORMATION
The following procedure forms the basis for these repair instructions and must be observed without fail.
For additional information see: GENERAL PROCEDURE FOR THE DISASSEMBLY AND INSTALLATION OF BONDED WINDOW GLASS .

NOTE: TECHNICAL INFORMATION
Perform window removal using the "spider".
For additional information see: REMOVING WINDOWS WITH A "SPIDER" .

Remove rear window

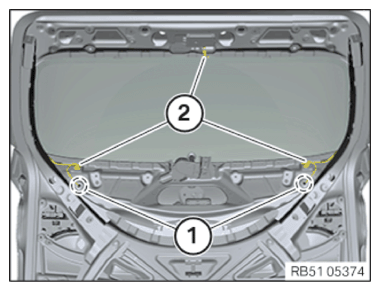

Loosen screws (1).
Disconnect the plug connections (2) and unclip from the cable clips.

Courtesy of BMW OF NORTH AMERICA, INC.
Secure cable (1) to rear window with adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

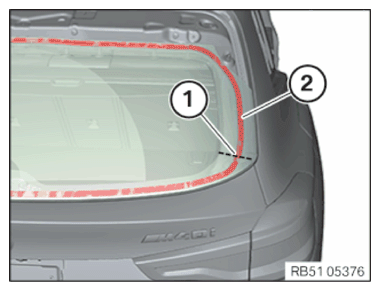

Tape off body in area of piercing point with fabric adhesive tape.
Push the thread (1) through the adhesive bead (2) along the line from the inside.
Cut out the rear window with spider.

Courtesy of BMW OF NORTH AMERICA, INC.
