General Electrical System -- Repair (2 Of 2) (G01)
>>
61 31 Switch, Sensor
>>
61 31 084 Removing and installing/replacing the switch for the power tailgate (all X3 models, 2018-2022)
>>
Remove the power tailgate switch
Remove the power tailgate switch

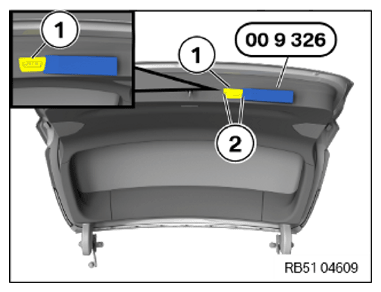

Unclip the switch (1) for the power tailgate with the special tool
0 496 570 (00 9 326)
at the side detents (2).
Disconnect the respective plug connection and remove the switch (1) for the power tailgate.
Courtesy of BMW OF NORTH AMERICA, INC.
