63 31 Interior Lighting
>>
63 31 085 Removing And Installing/Replacing Trunk Compartment Light (Trunk Lid) (X3)
>>
Removing the Trunk Lid Light
Removing the Trunk Lid Light

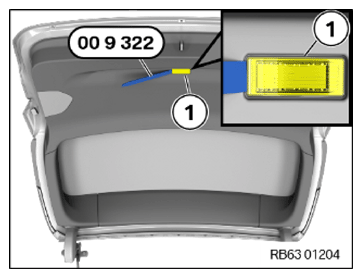

Unclip the trunk lid light (1) with the special tool
0 490 539 (00 9 322)
.
Disconnect the associated plug connection and remove the trunk lid light (1).
Courtesy of BMW OF NORTH AMERICA, INC.
