Remove both trim pieces for the side rear window frame
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the cover for the side rear window frame

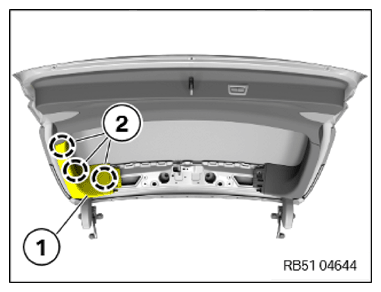

- Unclip and remove trim for the side rear window frame (1) on the detents (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
