Removing and installing/sealing right cylinder head cover (S63T2) (X6 M)

Special tools required:

• 11 4 470

Necessary preliminary tasks:

• Disconnect NEGATIVE TERMINAL .
• Remove ACOUSTIC COVER .
• Remove right-hand INTAKE SILENCER HOUSING .
• Remove right INTERCOOLER .
• Disconnect FUEL DELIVERY LINE .
• Detach engine wiring harness and wiring harness for injectors and set aside.
• Remove IGNITION COILS , cylinders 1-4.
• Remove HIGH PRESSURE PUMP .
• Remove INJECTORS , cylinders 1-4.
• Remove CATALYTIC CONVERTER for cylinders 1-4.
• Remove VACUUM PUMP .

Release screws (1).

Remove holder (2).

Tightening torque: 11 12 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Remove oil filler neck (2).

Courtesy of BMW OF NORTH AMERICA, INC.

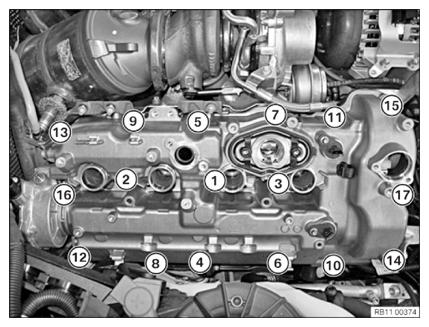

Release screw connections in the sequence (16 to 1).

Remove cylinder head cover.

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing surface (1 and 2) with special tool 11 4 470.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace profile seals (1 and 2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring (1) for lubrication of vacuum pump.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

It is important to insert screws (15 and 16) for exact positioning of the camshaft sensors.

Fit cylinder head cover.

Position screws (15 and 16).

Release screws again by a 90° turn.

Secure cylinder head cover in sequence (1 to 16) in two work steps.

Tightening torque 11 12 3AZ .

Assemble engine.
