11 31 051 Replacing timing chain (N55) up to March 2012

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER .
Remove all SPARK PLUGS .
Remove CRANKSHAFT SEAL at front
Remove TENSIONING DEVICE for drive belt.
Remove VIBRATION DAMPER .
Check TIMING .
Remove SEALING CAP for vacuum pump

Engine removed:

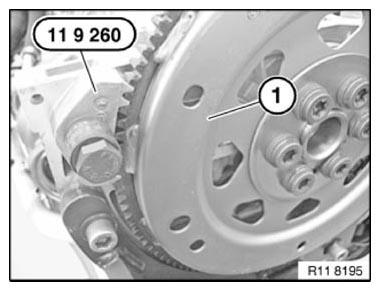

Block crankshaft with special tool 11 9 260 .

IMPORTANT: To release central bolt (1), remove special tool 11 0 300 .

Fig 1: Identifying Special Tool (11 9 260) & Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: When central bolt of crankshaft is released, there is no longer a secure connection to timing drive.

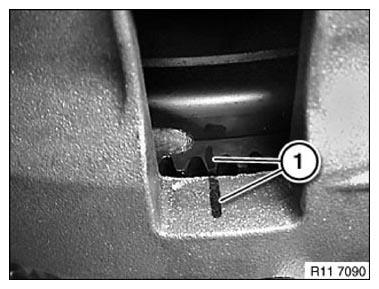

Mark position of crankshaft using a colored mark (1).

This will make future insertion of special tool 11 0 300 easier.

Fig 2: Identifying Crankshaft Position Mark

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with automatic transmission:

Block crankshaft with special tool 11 8 660 .

Fig 3: Blocking Crankshaft With Special Tool (11 8 660)

Courtesy of BMW OF NORTH AMERICA, INC.

Vehicles with manual gearbox:

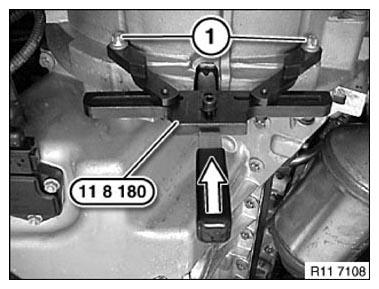

Attach special tool 11 8 180 to manual transmission with existing transmission bolts (1).

Block crankshaft in direction of arrow with special tool.

Fig 4: Attaching Special Tool (11 8 180) To Manual Transmission

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Before releasing the central bolt, the chain tensioner must be relieved of tension.

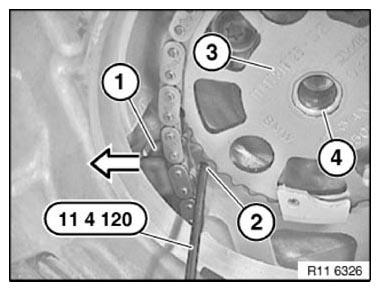

Press timing chain with chain tensioner (1) in direction of arrow.

Disconnect timing chain with special tool 11 4 120 .

Fig 5: Pressing Timing Chain With Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Breakaway torque of the central bolt > 600 Newton meters
A 3/4-inch tool (large powered square) is required to release central bolt.

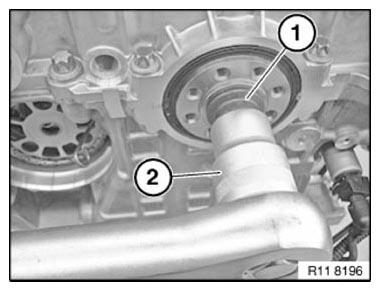

Release central bolt (1) with 3/4-inch tool (2).

Tightening torque: 11 21 1AZ .

Fig 6: Releasing Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Remove CHAIN TENSIONER .

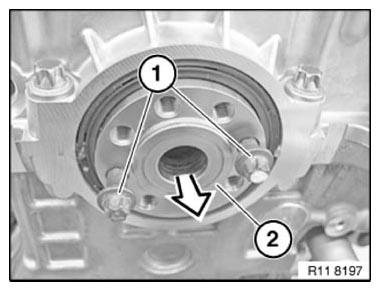

Screw in vibration absorber screws (1).

Move hub (2) on crankshaft forward in direction of arrow to remove.

Fig 7: Identifying Crankshaft Hub & Vibration Absorber Screws

Courtesy of BMW OF NORTH AMERICA, INC.

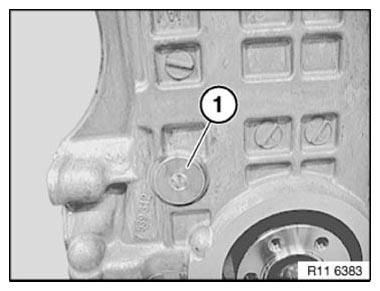

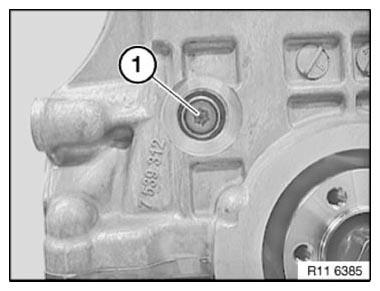

Open screw plug (1).

Tightening torque: 11 31 8AZ .

Fig 8: Identifying Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

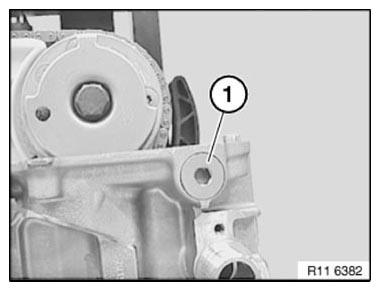

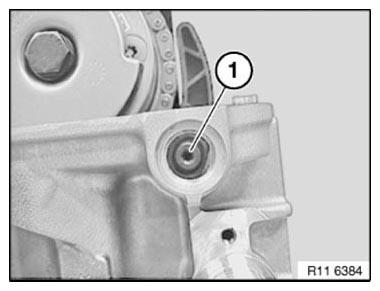

Open screw plug (1).

Tightening torque: 11 11 7AZ .

Installation note:

Replace aluminum screws.

Fig 9: Identifying Screw Plug

Courtesy of BMW OF NORTH AMERICA, INC.

Release bearing journal (1) from timing chain module on cylinder head.

Tightening torque: 11 31 6AZ .

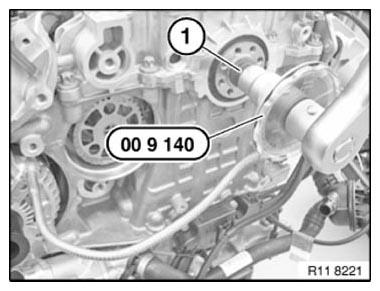

Fig 10: Identifying Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Install special tool 11 4 280 to release the central bolts on the intake and exhaust camshaft adjusters.

Remove INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

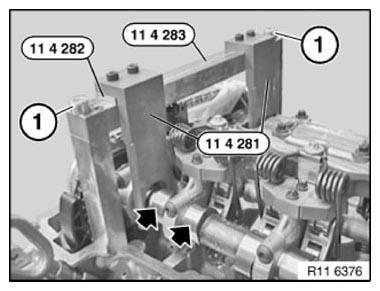

Fig 11: Installing Special Tool (11 4 280) On Camshaft Adjusters

Courtesy of BMW OF NORTH AMERICA, INC.

Release bearing journal (1) from timing chain module on crankcase.

Tightening torque: 11 31 5AZ .

Fig 12: Identifying Timing Chain Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

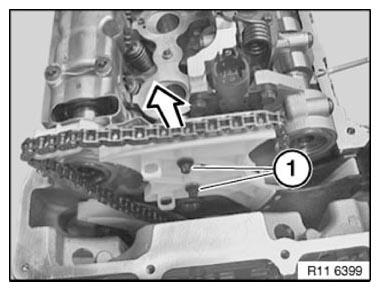

Release bolts (1) from timing chain module on cylinder head.

Tightening torque: 11 31 4AZ .

Remove chain module with timing chain and camshaft sprocket upwards in direction of arrow.

NOTE: Graphic N52.

Fig 13: Removing Timing Chain Module Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

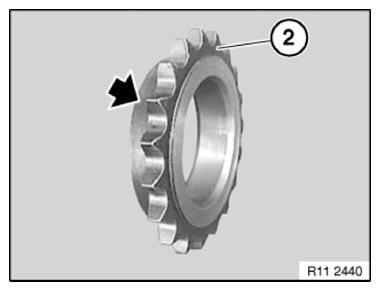

IMPORTANT: Note direction of installation of camshaft sprocket (2).

Collar (see arrow) on camshaft sprocket (2) points to engine .

Incorrect assembly will result in engine damage .

Fig 14: Locating Sprocket Collar

Courtesy of BMW OF NORTH AMERICA, INC.

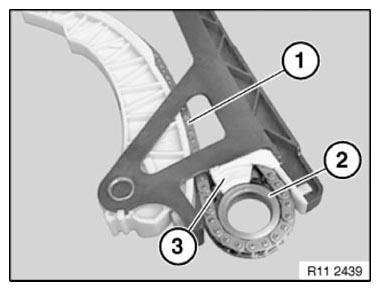

Pull timing chain (1) upwards until camshaft sprocket (2) engages chain guide (3).

Install timing chain (1) and sprocket (2) in this position.

Installation note:

Always hold timing chain (1) under tension. Timing chain (1) may jam on chain guide (3).

Fig 15: Identifying Timing Chain, Camshaft Sprocket & Chain Guide

Courtesy of BMW OF NORTH AMERICA, INC.

Insert central bolt (1) with hub for crankshaft.

Tighten down central bolt (1).

Tightening torque: 11 21 1AZ .

Install INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .

Install CHAIN TENSIONER .

Fig 16: Inserting Crankshaft Central Bolt With Hub

Courtesy of BMW OF NORTH AMERICA, INC.

Crank engine twice.

Check TIMING .

If necessary, adjust VALVE TIMING .

Replace front CRANKSHAFT SEAL .

Assemble engine.
