11 28 020 Replacing tensioning device for alternator drive belt (N55)
WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 11 0 390 .
Necessary preliminary work:
- Remove DRIVE BELT

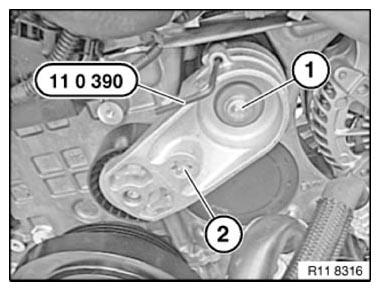

Remove special tool 11 0 390 .
Release screw (1) on belt tensioner.
Tightening torque: 11 28 1AZ .
Assemble engine.
