11 14 010 Replacing sealing cap for vacuum pump (N55)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove FAN COWL .
Remove drive belt TENSIONING DEVICES .

Removing sealing cap:

Prepare special tool 11 8 530 .

Remove special tool 11 8 533 from special tool 11 8 532 .

Install special tool 11 8 534 .

Special tool 11 8 536 is not required.

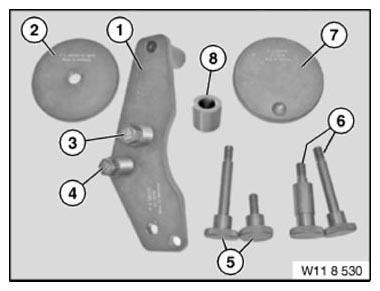

Fig 1: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Attach special tool 11 8 531 to long special tool 11 8 535 .

Short special tool 11 8 535 (short); a 6 mm thick M10 washer must be placed underneath between crankcase and special tool 11 8 531 .

NOTE: For purposes of clarity, graphics show alternator and power steering pump removed.

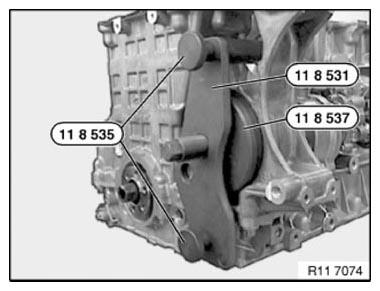

Fig 2: Attaching Special Tool (11 8 531) To Special Tool (11 8 535)

Courtesy of BMW OF NORTH AMERICA, INC.

Special tool 11 8 537 must be positioned manually on sealing cap.

Screw in special tool 11 8 534 .

NOTE: The sealing cap is pressed out diagonally during this work step

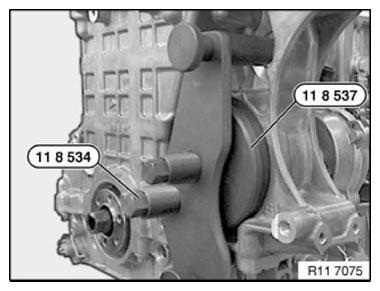

Fig 3: Identifying Special Tool (11 8 537)

Courtesy of BMW OF NORTH AMERICA, INC.

Installing sealing cap:

Prepare special tool 11 8 530 .

Remove special tool 11 8 534 from special tool.

Install special tools 11 8 533 and 11 8 532 .

Fig 4: Identifying Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Screw in new sealing cap (1) with special tools 11 8 532 and 11 8 533 until flush with crankcase upper part.

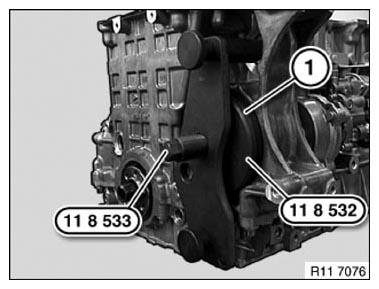

Fig 5: Identifying Special Tools (11 8 532 And 11 8 533)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
