11 31 505 Adjusting timing of camshaft(s) (N55)

Special tools required:

• 00 9 120
• 00 9 250
• 11 4 280
• 11 4 281
• 11 4 282
• 11 4 285
• 11 4 290
• 11 9 340

Necessary preliminary tasks:

• Remove CYLINDER HEAD COVER .
• Check TIMING .

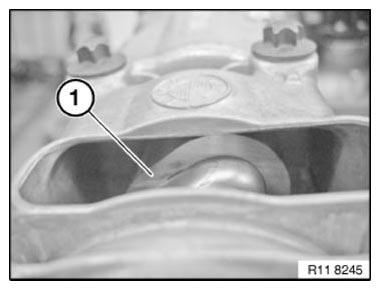

With 1st cylinder in TDC firing position, cams of intake camshaft (1) at 1st cylinder point upwards at an angle.

Fig 1: Identifying Cams Of Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

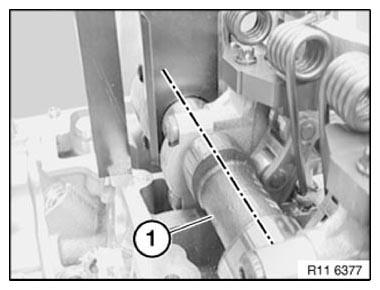

With 1st cylinder in TDC firing position, cams of the exhaust camshaft (1) point upwards at an angle.

Fig 2: Identifying Cams Of Exhaust Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

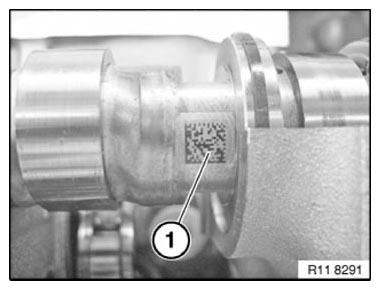

Part numbers (2) on intake and exhaust camshafts (1) point upwards.

Fig 3: Identifying Intake And Exhaust Camshaft Part Numbers

Courtesy of BMW OF NORTH AMERICA, INC.

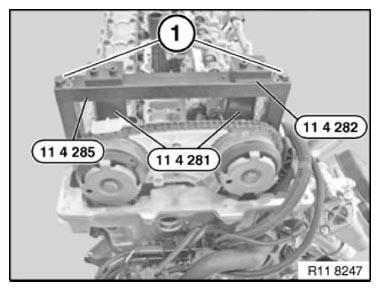

Secure special tool 11 4 285 with bolts (1) to cylinder head.

Mount reworked special tool 11 4 281 on the intake camshaft.

Mount special tool 11 4 281 on the exhaust camshaft.

Fig 4: Fitting Special Tool (11 4 282) Underneath On Side Of Intake Camshaft

Courtesy of BMW OF NORTH AMERICA, INC.

Release central bolts (1 and 2).

Fig 5: Identifying Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Release CHAIN TENSIONER  (1).

Tightening torque: 11 31 7AZ .

Fig 6: Identifying Chain Tensioner

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace sealing ring.

Turn increment wheel (2) in direction of arrow until retaining pins (1) on special tool 11 4 290 match up.

11 4 290 Slide on special tool in direction of arrow.

Fig 7: Turning Increment Wheel

Courtesy of BMW OF NORTH AMERICA, INC.

Use bolts to fasten special tool 11 4 290 .

Installation note:

Replace both central bolts.

Screw in both central bolts.

Release both central bolts 90°.

11 9 340 Screw special tool into cylinder head.

Fig 8: Releasing Central Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Pretension timing chain with special tool 11 9 34000 9 2500, 6 Nm

Fig 9: Identifying Special Tool (11 9 340)

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 00 9 120 to tighten central bolts of intake adjuster.

Tightening torque: 11 36 1AZ .

Fig 10: Tightening Central Bolts Of Intake Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Use special tool 00 9 120 to tighten central bolts of exhaust camshaft adjuster.

Tightening torque: 11 36 1AZ .

Fig 11: Tightening Central Bolts Of Exhaust Camshaft Adjuster

Courtesy of BMW OF NORTH AMERICA, INC.

Remove all special tools.

Crank engine on the central bolt twice in the direction of engine rotation and check the TIMING .

Assemble engine.
