11 23 010 Removing and installing/replacing vibration damper (N55)

WARNING: This page is about a different car, the 2013 BMW X5, 2012 BMW X5, and 2011 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary tasks:

Remove UNDERBODY PROTECTION
Remove DRIVE BELT .

NOTE: Gearbox removed:

Block crankshaft with special tool 11 9 260 .

NOTE: Picture of flywheel removal.

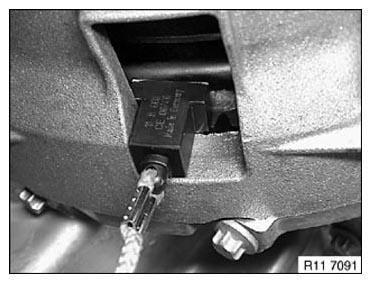

Fig 1: Blocking Crankshaft With Special Tool 11 9 260

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox installed with manual gearbox:
Block crankshaft with special tool 11 8 180 .

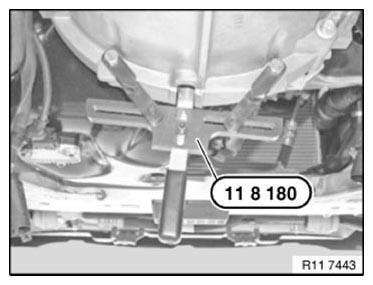

Fig 2: Blocking Crankshaft With Special Tool 11 8 180

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Gearbox installed with automatic transmission:

Block crankshaft with special tool 11 8 660 .

Fig 3: Blocking Crankshaft With Special Tool 11 8 660

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not release central bolt.
If the central bolt is accidentally loosened, the timing must be readjusted.

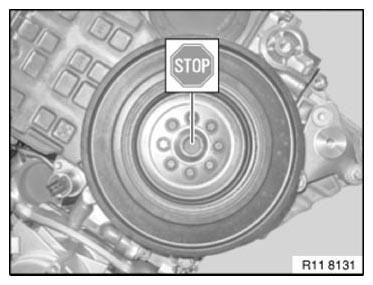

Fig 4: Identifying Central Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1 to 8).

Remove vibration damper (1).

Screws on vibration damper

Tightening torque: 11 23 1AZ .

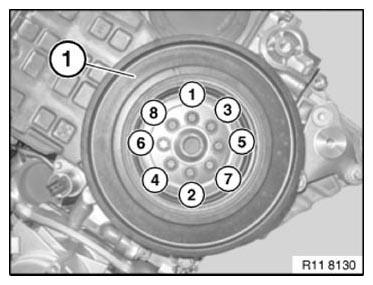

Fig 5: Vibration Damper Bolts Tightening/Loosening Sequence (N55)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
