51 45 030 Removing and installing instrument panel trim

Attention!

NOTE: Risk of damage!
A hard disk is installed in the Car Information Computer (CIC).

Carry out mechanical work on the CIC and adjacent components with care.

Avoid subjecting the CIC to vibration/shocks.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Depending on version:

NOTE: Shown removed here for purposes of clarity. Wiring harness is therefore not included in graphic.

Detach plug connection (1) of front passenger airbag module (2).

(Observe notes regarding AIRBAG PLUG CONNECTIONS ).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove air duct (1) and sound insulation (2) in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

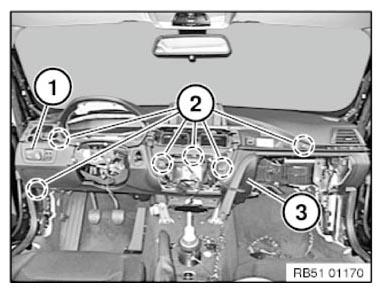

Release and disconnect plug connection at light operating facility (1).

Release cable clips in area of middle air duct.

Release screws (2) on dashboard (3).

Tightening torque: 51 45 7AZ .

With the aid of a 2nd person, pull dashboard (3) towards rear slightly and feed out electrical wiring, release further cable clips if necessary.

Remove dashboard (3) and feed out all electrical wires.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure dashboard (3) is correctly seated against gasket for Head-Up Display and heating and air-conditioning unit.

Screw dashboard (3) in place from the middle to the outside.

Make sure all electrical lines are correctly routed.

NOTE: Graphic is only an example.

Installation note:

Make sure guides (1) on dashboard (2) are correctly seated in respective mountings of the bulkhead.

Make sure gaskets are correctly seated on air ducts.

Correctly insert foam-padded part of dashboard (2) in center and install.

Courtesy of BMW OF NORTH AMERICA, INC.
