51 45 184 Removing and installing/replacing trim panel for pedal mechanism

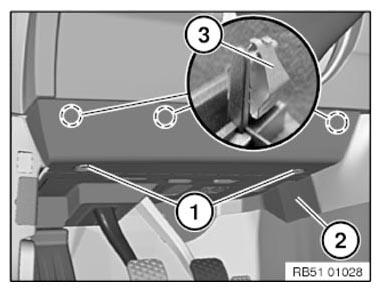

Release screw connection (1).

Tightening torque: 51 45 8AZ .

Release trim panel (2) at clamps (3).

Lower trim panel (2) slightly and disconnect plug connections behind.

Courtesy of BMW OF NORTH AMERICA, INC.

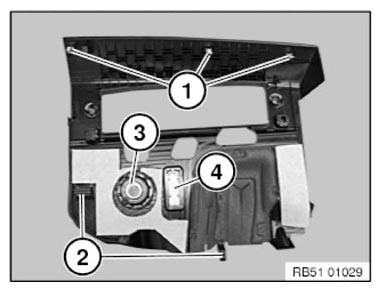

Installation note:

Clamps (1) and guides (2) must not be damaged.

Feed guides (2) correctly into the corresponding holder in the vehicle.

Replacement (depending on version):

• Remount SPEAKER FOR HANDS-FREE SYSTEM (3)
• Remount FOOTWELL LIGHT (4)

  Courtesy of BMW OF NORTH AMERICA, INC.
