62 11 280 Removing and installing/replacing instrument panel

Necessary preliminary tasks:

• Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
• Move steering column completely rearwards
• If necessary, tape off cover to protect against damage

Version with instrument panel in leather:

During installation and removal tool combinations can damage the leather of the instrument panel.

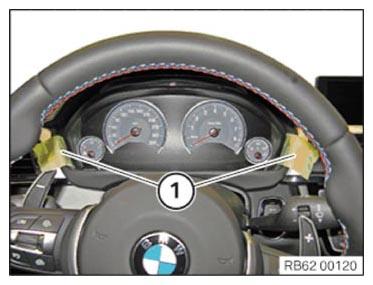

In order to prevent damage, yellow plastic adhesive tape (1) must be stuck on the left and right sides of the instrument panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque: 62 11 1AZ .

Pry out instrument panel in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

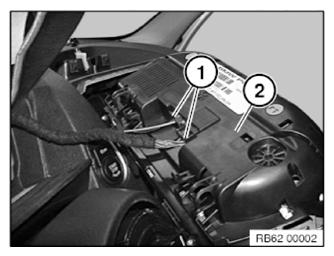

Detach plug connection (1) and remove instrument panel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining tabs (1) of dashboard (2) must be exactly seated in mountings of dashboard.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .

Check values for Condition Based Service (CBS) and correct if necessary.
