51 16 366 Removing and installing/replacing right glove box with housing

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

• Remove INSTRUMENT PANEL TRIM AT BOTTOM RIGHT
• Remove SIDE PANEL ON DASHBOARD

US version:

• Remove AIRBAG MODULE FOR FRONT PASSENGER KNEE PROTECTION

Release screws (1).

Tightening torque: 51 16 2AZ .

Installation note:

Ensure the glove box is correctly seat on the holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque: 51 16 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Open glovebox.

Release screws (1).

Tightening torque: 51 16 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Pull glove box (1) out slightly and unlock and disconnect depending on the plug connection versions (2).

Remove glove box (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

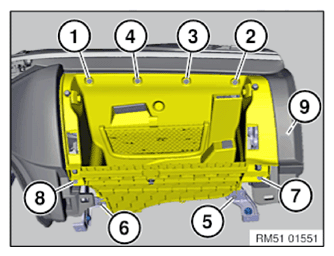

To avoid straining the glove box and causing interference noise, observe the screwing sequence (1 to 9).

This also helps achieve optimal gap spacing.

Courtesy of BMW OF NORTH AMERICA, INC.

In the case of replacement, the following parts need to be remounted:

• Refer to GLOVE BOX DAMPER
• Refer to GLOVE BOX COVER
• Refer to GLOVEBOX LIGHT

Depending on version:

• Refer to USB INTERFACE CONNECTING SOCKET
• Refer to HOTEL POSITION SWITCH
